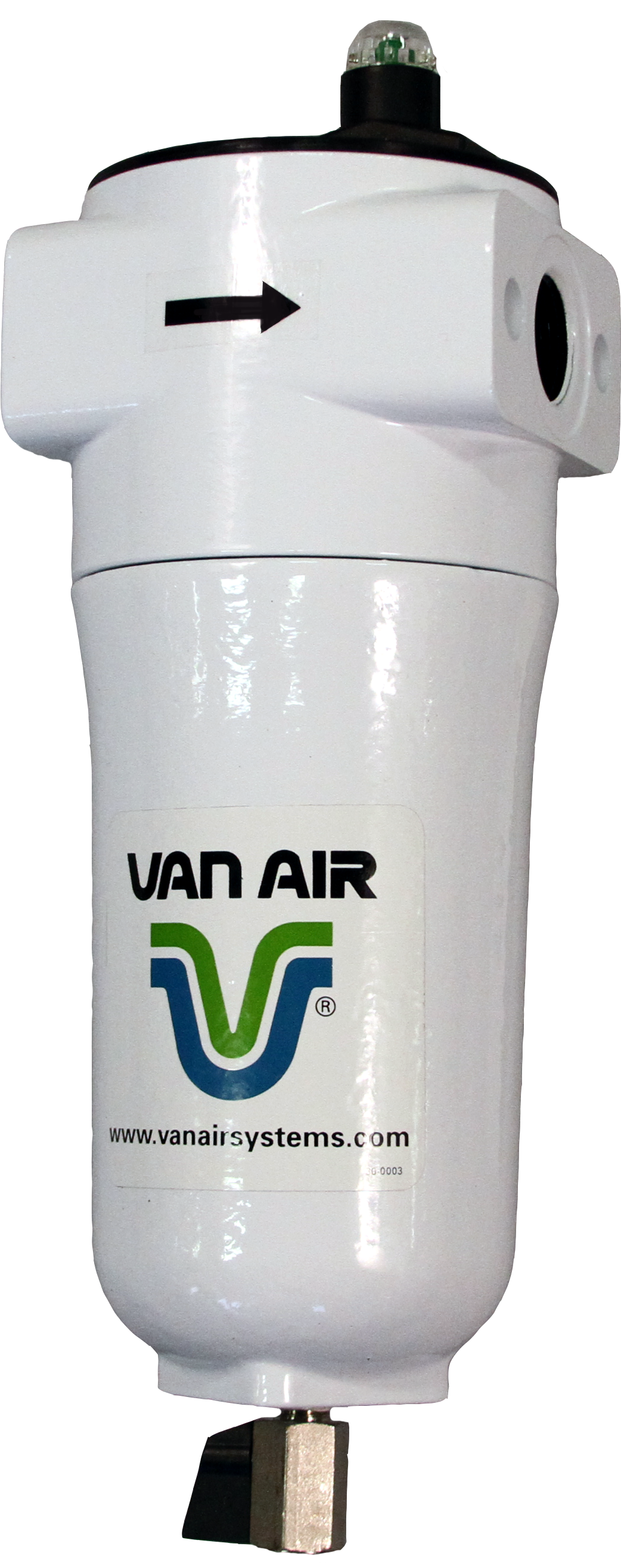

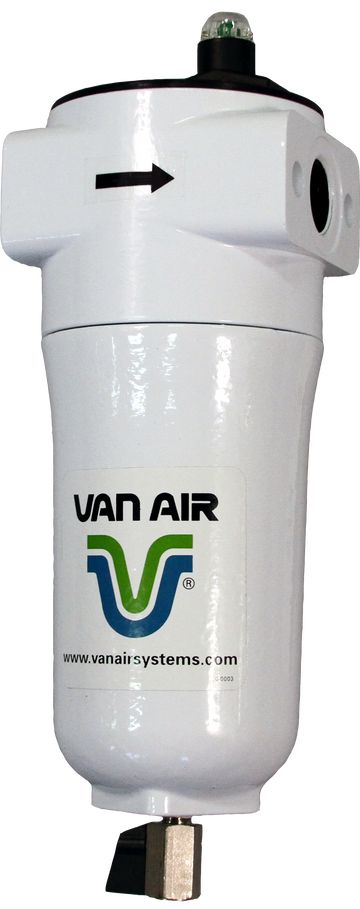

Van Air Systems Coalescing Filter F200-1000-3-C-AD-PD6 X 84-27753

RELIABLE FILTER FOR CONTAMINANT REMOVAL

F200 Series

Van Air Systems' F200 series coalescing and particulate filters are designed to remove contaminants from compressed air systems. Available in 1/2" to 3" NPT connection sizes and flow capacities from 15 to 1600 scfm at 100 psig in 15 housings and 9 filtration grades, the F200 series removes oil aerosols, oil vapors, condensed water, and particulates. F200 housings are made of cast aluminum and coated with an epoxy powder coating for corrosion resistance. All units include push-on elements with a durable polyester drain layer. Accessories include differential pressure indicators, wall mounting kits, connector kits and automatic drain valves.

FEATURES & BENEFITS

• Flows up to 1600 scfm at 100 PSIG
• Maximum working pressure, 250 PSIG at 225°F (RD grade element 250 PSIG at 80°F)
• Heavy-duty cast aluminum design
• Push-on element for quick servicing
• Standard pop-up indicator signals when element needs replacing
• Large reservoirs facilitate draining of coalesced water and liquids
• Nine filter element grades, 25 micron - .01 micron
• Remove oil aerosols, oil vapors, liquids, and sub-micron particles
• Long-lasting elements reduce maintenance costs

APPLICATIONS

• Instrument air & gas
• Pre-filter for deliquescent, regenerative dryers and refrigerated dryers
• Pneumatic hand tools
• Abrasive blasting
• Dust collectors
• Air cylinders, motors
• Blow molding
