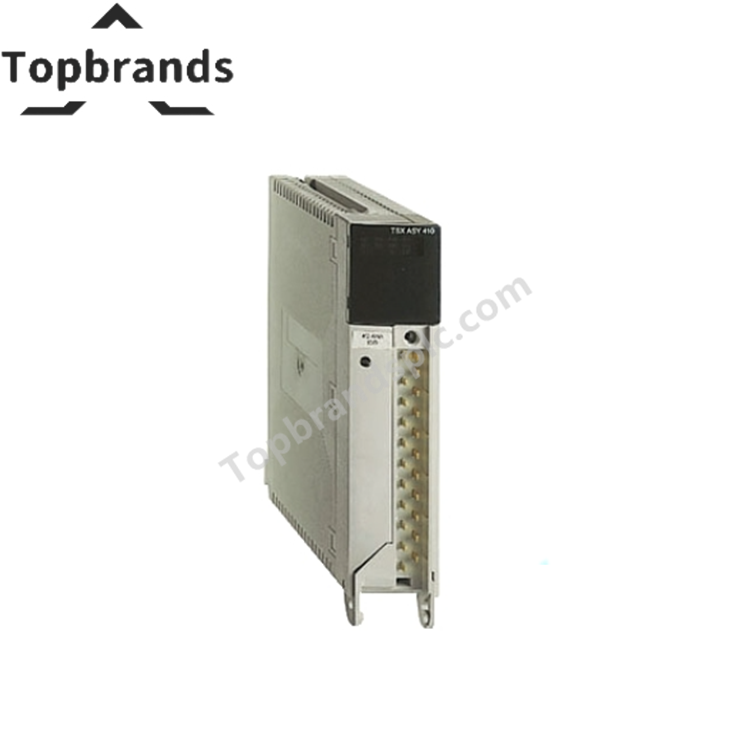

TSXASY410 | Schneider Electric Analog Output Module

Specifications

• Range of Product: Modicon Premium Automation platform

• Product or Component Type: Analog output module

• Number of Analog Outputs: 4

• Analog Output Type:

• Current: 0…20 mA, 4…20 mA

• Voltage: ±10 V

• Analog/Digital Conversion: 11 bits + sign

Complementary

• Conversion Time: 2.5 ms

• Measurement Resolution:

• 10.25 µA for 0…20 mA

• 10.25 µA for 4…20 mA

• 5.12 mV for ±10 V

• Electrical Connection: Screw terminal block

• Measurement Error:

• ±10 V, 25 °C: 0.45 % of full scale

• 0…20 mA, 25 °C: 0.52 % of full scale

• 4…20 mA, 25 °C: 0.52 % of full scale

• ±10 V, 0…60 °C: 0.75 % of full scale

• 0…20 mA, 0…60 °C: 0.98 % of full scale

• 4…20 mA, 0…60 °C: 0.98 % of full scale

• Isolation:

• Between channels: 1500 Vrms

• Between channels and bus: 1500 Vrms

• Between channels and ground: 500 V

• Protection: Overload and short-circuit protection

• Output Voltage Limits: ≤ 30 V

• Load Impedance (Ohmic):

• <600 Ω for 0…20 mA and 4…20 mA

• 1000 Ω for ±10 V

• Maximum Load Inductance: 300 µH

• Maximum Load Capacitance: 0.1 µF

Marking & Consumption

• Marking: CE

• Current Consumption: 900 mA @ 5 V DC

• Module Format: Standard

• Net Weight: 0.77 lb (0.35 kg)

Terminals Description (PLC #1)

• OUT_ANA_SHIELD#: 14, 19, 5, 15, 20, 4, 9, 10

• OUT_ANA_CUR#: 18 (#3), 13 (#2), 8 (#1), 3 (#0)

• OUT_ANA_VOLT#: 1 (#0), 6 (#1), 11 (#2), 16 (#3)

• OUT_ANA_COM#: 2 (#0), 7 (#1), 12 (#2), 17 (#3)

Environment

• Standards: IEC 61131-2, UL 508, CSA C22.2 No 213 (Groups A–D), CSA C22.2 No 142, 92/31/EEC, 89/336/EEC, 93/68/EEC, 73/23/EEC

• Certifications: GL, ABS, RINA, DNV, RMRS, LR, BV

• Ambient Air Temperature for Operation: 32…140 °F (0…60 °C)

• Ambient Air Temperature for Storage: -13…158 °F (-25…70 °C)

• Relative Humidity: 10…95 % (operation, no condensation), 5…95 % (storage, no condensation)

• Operating Altitude: 0…6561.68 ft (0…2000 m)

• Protective Treatment: TC

• IP Degree of Protection: IP20

• Pollution Degree: 2
