SLG Lighting Suspending Semi-Direct Design Series Gen 1

SLG Lighting Suspending Semi-Direct Design Series Gen 1

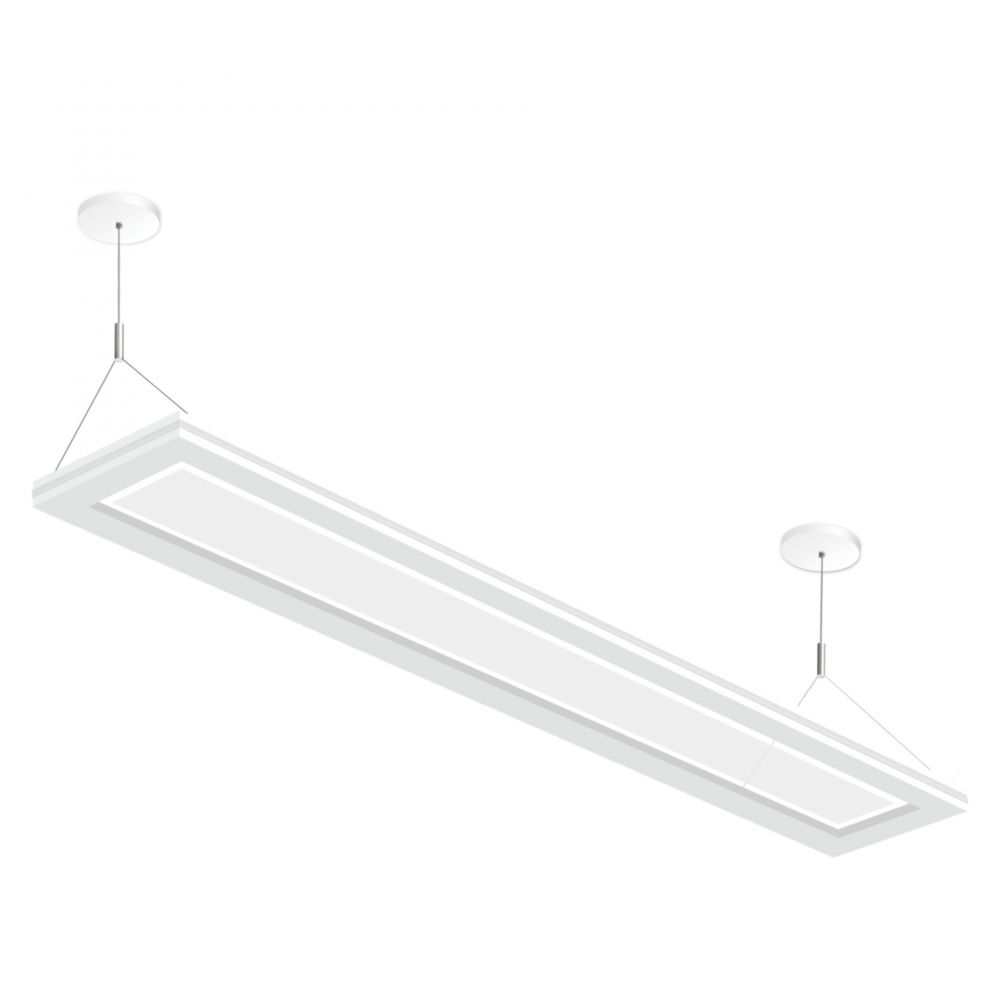

The SSD Suspending Semi-Direct Design Series Gen 1 is a commercial pendant architectural lighting with advanced LED optical system for superior performance. This stunning design includes a transparent zone between the frame and light emitting edge to create an illusion of the light floating in mid-air. This luminaire is available in 4 ft and 8 ft and can be mounted individually or joined to create a continuous row for linear illumination. Key features include 55% downlighting and 45% uplighting, step dimming, and selectable color temperatures in 3000K, 3500K and 4000K for SSD 4 only.

APPLICATIONS

Airport, Educational, Executive, Health, Hospitality, Hotels, Medical, Retail, and any open spaces that require a unique and elegant architectural lighting design.

REPLACEMENT

T8 fluorescent lamps with at least 60,000 hours of virtually maintenance-free illumination

Specifications

• Product Series: Design
• Wattage: 40W , 80W
• Lumen Output: 4216 LM , 4200 LM , 4254 LM , 8598 LM
• Correlated Color Temperature (CCT): 3000K , 3500K , 4000K
• Mounting Type: Pendant Mount
• Environment: Indoor
• Shape: Rectangle
• Listings: DLC Standard , ETL
• Product Type: Architectural
• Generation: G1
• Color & Finish: White Polyester Powder
• Light Source: LED - Static
• Voltage Rating: Standard 120-277V
• Warranty: 5 Year
• Labor Warranty: No

Product Files

Click for SSD Suspending Semi-Direct Spec Sheet

Click for SSD Suspending Semi-Direct Install Guide
