150W Ceiling Mount Explosion Proof High Bay LED Light - 21,000 lms - Dust Shroud - Food Safe/NSF Compliant
Regular price
$499.00
Sale price
$499.00
Regular price
Unit price
-
Free Shipping & Returns: On all orders over $60
150W Ceiling Mount Explosion Proof High Bay LED Light - 21,000 lms - Dust Shroud - Food Safe/NSF Compliant
Regular price
$499.00
Sale price
$499.00
Regular price
Unit price
Product description
Shipping & Return
Specifications / Additional Information
| EPLC2-HB-150LED-RT-NSF-DM-CM - High Bay Explosion Proof LED Light | Ratings/Approvals |
| Listing: NRTL Listed for United States, Canada | Class I, Division 2, Groups C and D |
| Lamp Technology: Cree LED | Class II, Divisions 1 & 2, Groups E,F,G |
| Dimensions: - | Class III, Divisions 1 & 2 |
| Weight: - | ATEX EX II 3G Exd IIB T5 Ga |
| Voltage: 100-277 Volts AC, 50/60Hz or 11-25 Volts AC/DC | ATEX EX II 3D Exd IIA T5 Da |
| Total Watts: 150W | NRTL Certified to UL 844 Ed. 13 |
| Total Lumens:Â 21,000 lms | NRTL Certified to UL 1598 |
| Luminous Efficiency: 140 Lm/W | NRTL Certified to C22.2 No. 137 Rev 2009 |
| Lamp Life: 60,000+ Hours | NRTL Certified to C22.2 No. 250.0 |
| Color Temp: 5000K, 4000K, 3000K | NRTL Certified to ATEX 94/9/EC |
| Color Rendering Index: >75 CRI | T5 Temperature Rating |
| Lamp Type: - | Paint Spray Booth Approved |
| Lamp Base: - | IEC 60529 Tested |
| Replacement Lamp: - | IP67 Rated Waterproof |
| Beam Angle: 60° or 125° | LEL Approved |
| Lighting Configuration: Flood Pattern | Multiple Driver Banks |
| Power Efficiency: >95% | 80% Lumen Retention after 60,000 Hours |
| Power Factor: 0.992 | Factory Sealed Light Fixture |
| Ambient Operating Temp Range: -50°C to +65°C | Recommended 15` to 40` Mounting Height |
| Operating Temp Rating: T5 | NSF Compliant |
| Housing Material: Copper Free Cast Aluminum | |
| Lens Material: Hardened Borosilicate Glass | |
| Gasket Material: Silicone | |
| Protection: Food Safe Lens, Dust Shroud | |
| Mounting: Ceiling Mount Junction Box | |
| Wiring: (4) 3/4" NPT Hubs | |
| Â |

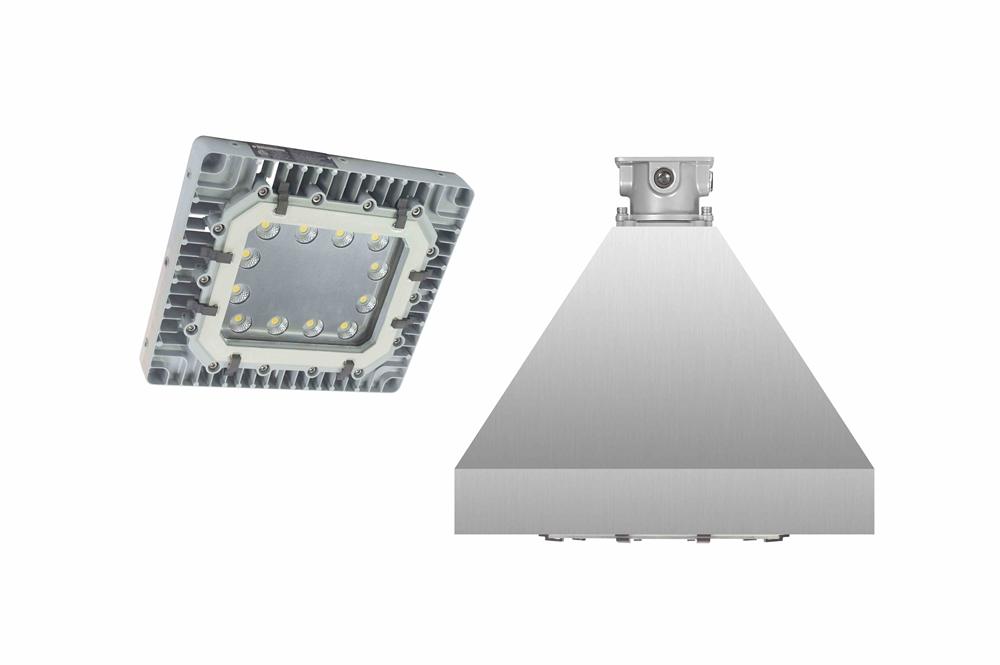

The Larson Electronics EPLC2-HB-150LED-RT-NSF-DM-CM Ceiling Mount Explosion Proof High Bay light fixture provides operators with a powerful and energy efficient alternative to traditional hazardous location luminaries in food processing sites. Cree LED technology and compact design makes this lamp an excellent replacement upgrade option for bulky and high maintenance cost older incandescent, metal halide and high pressure sodium lights. Â
This Class I, Division 2 and Class II, Divisions 1 & 2 explosion proof light fixture provides 21,000 lumens of high quality light while drawing only 150 watts. The copper free aluminum alloy body is powder coated for added durability and an attractive aesthetic appearance. Special heat dissipating design in conjunction with LED technology helps this fixture to achieve an excellent 60,000 hour rated lifespan with 80% lumen retention. Light weight and a low profile make this unit an attractive alternative to larger and heavier older fixtures and requires less hardware to install.
This NSF compliant food safe light contains a gasketed polycarbonate lens that covers the faceplate of the fixture and prevents any glass from being exposed. The gasket is made from food grade materials allowing this fixture to be installed in Group G environments. A heavy-duty pyramid shaped dome prevents dust from accumulating on top of the fixture. With the dust shroud, the unit can still be hosed down making the explosion proof light ideal for food processing applications.
LED Benefits: Unlike gas burning and arc type lamps that have glass bulbs, LEDs have no filaments or fragile housings to break during operation and/or transportation. Instead of heating a small filament or using a combination of gases to produce light, light emitting diodes (LEDs) use semi-conductive materials that illuminate when electric current is applied, providing instant illumination with no warm up or cool down time before re-striking. Because there is no warm up period, this light can be cycled on and off with no reduction in lamp life.
LED lights run at significantly cooler temperatures than traditional metal halide and high pressure sodium lights and contain no harmful gases, vapors, or mercury, making them both safer and more energy efficient. No extra energy is wasted in cooling enclosed work areas due to external heat emissions from bulb type lights, and the operator risks associated with traditional lighting methods, such as accidental burns and exposure to hazardous substances contained in the glass bulbs, are eliminated. In addition, LEDs are also safer for the environment as they are 100% recyclable, which eliminates the need for costly special disposal services required with traditional gas burning and arc type lamps.
This explosion proof LED light fixture features multiple LED drivers which helps to increase the operational life of the fixture. With traditional LED lights, in the event an LED array or driver fails, the entire fixture no longer illuminates. This new series of LED lamps contains twelve individual LED boards configured in a series of banks. Each bank contains two LED boards with an individual driver. In the event of a driver failure, only one bank of LEDs will be effected while the other banks will continue to operate. In the event that of an LED failure, the mating LED will continue to operate.
|
|||||||||
