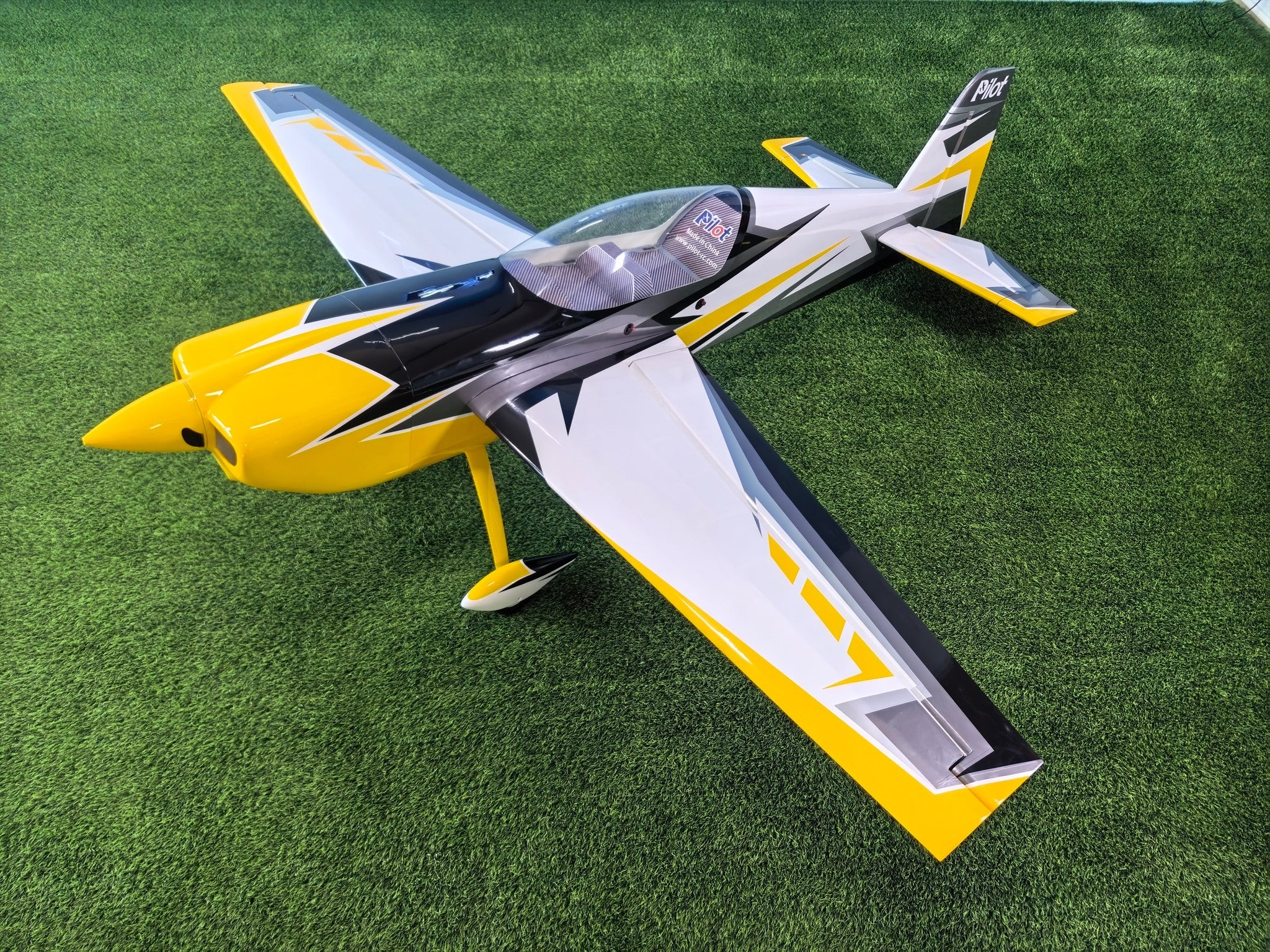

Pilot RC Raven 103" 2.26m 02 yellow/black/silver/white
-
Estimated Delivery:Jul 31 - Aug 04
-
Free Shipping & Returns: On all orders over $60
Pilot RC Raven 103" 2.26m 02 yellow/black/silver/white
The Ultimate 120cc Hybrid Evolution
The Pilot-RC 103″ Raven is the culmination of an intensive design journey that began in early 2025. Our mission was clear: synthesize the world-class features of our most successful platforms into a single, dominant 120cc airframe. By blending the cutting-edge, lightweight wing technology of the Extra 330SX with the legendary tail authority and side profile of the Extra NG V2, we have created a “super-hybrid” that defines the modern aerobatic experience.
Extensively flight-tested through three generations of prototypes, the Raven has been refined to hit the perfect “sweet spot.” It delivers the aggressive 3D agility you demand with the rock-solid tracking and precision required for high-level sequences.
Whether you are pushing the envelope in low-and-slow high-alpha flight or screaming through a precision line, the Raven 103″ provides a connected, intuitive feel that inspires total confidence. This isn’t just another airplane; it’s the new benchmark for Pilot-RC performance
Specifications:
| Model: | RAVEN |
| Wingspan: | 103.3″ (2.624mm) |
| Length: | 101″ (2.580mm) with 5″ spinner |
| Wing area: | 1,843″² (11,890cm²) |
| Weight: | 27.72lbs (12.6kg) |
FEATURES:
- NEW! Hybrid construction from wood and composite materials for specially reinforced fuselage and wings.
- NEW! Patented quick assembly system for wings, stabilizer no tools require
- NEW! Patented quick assembly system for canopy.
- NEW! Pre-installed blind nut on tip wing for night flight light system
- NEW! Counter balance on tip aileron for allow servo outboard move closer to inboard servo for lighter tip wing and crisp snap roll
- NEW! Fiberflass canopy frame.
- NEW! Spinner painted special color scheme (additional option)
- Film covering applied over a Genuine German Oracover (Ultracote) base
- Highly prefabricated, experienced builders can have air ready in under a day
- Pre-installed hinges (glued and pinned)
- Internally mounted cowling – so no visible external screw expose
- Removable wings and stabs
- Laser engraved motor mounting position
- Easy canister installation due to open construction
- Pull push system for Rudder servo
Included hardware:
- Complete air frame with all basic accessories (such as carbon fibre main undercarriage, tail-gear assembly and wing-tubes as well as fibreglass control horns and wheel pants)
- “Spare” lower section cowl from transparent plastic – used to mark out correct location to cut the cowl for perfect fitting every time
- Pre-installed hinges and pre-mounted canopy
- Fuel tank and fuel tubing pre-prepared, fuel dot and breather valve
- Wheels, axels and wheel pants
- Pre-prepared pushrods with ball links
- Matching plain color carbon spinner 5”
- Baffles cooling for intake cowl to cylinder
Required hardware:
Motor: 80-120cc or equivalent electric
Servos: 7 high torque plus throttle // Uses x2 per aileron, x1 per elevator half and x1 or x2 on rudder using push-pull
Also requires all the usual accessories such as transmitter, receiver, propeller, batteries, powerbox, extension leads and possibly other small accessories.
Build information
COWL SIZE:
EXHAUST TUNNEL SIZE:
RUDDER HORNS AND PULL PULL LOCATION:
Extension wire lengths:
Throttle:
25cm
Each wing:
Inside aileron 30cm
Outside aileron 80cm
(to reach receiver direct)
Each elevator:
136cm
Each rudder servo:
136cm
CENTER OF GRAVITY:
215mm
Measured back from leading edge of the wing at the fuselage.
You will find a laser engraved C.G. emblem on the inside of the fuselage, located close to the wing tube, which also shows the exact location for Center of Gravity.
FULL Build manual:
