Product Details:
| Single Phase Energy Efficient 50Hz | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Product Code | Model | Voltage | Full Load Amps | HP | Service Factor | SFHP | Primary Listings and Certs | Port Size (NPT) | Curve Key |
| 347926-INT or AP347926 |
WFEL-2 or WFEL-2-AP |
240/120 | 7.5/15.0 | 1/2 | 1.10 | 0.55 | CE | 2″ x 2″ | A |
| 347927-INT or AP347927 |
WFEL-3 or WFEL-3-AP |
240/120 | 7.5/15.0 | 3/4 | 1.10 | 0.83 | CE | 2″ x 2″ | B |
| 347928-INT or AP347928 |
WFEL-4 or WFEL-4-AP |
240/120 | 6.9/13.8 | 1 | 1.10 | 1.10 | CE | 2″ x 2″ | C |
| 347929-INT or AP347929 |
WFEL-6 or WFEL-6-AP |
240/120 | 7.2 | 1.5 | 1.10 | 1.65 | CE | 2″ x 2″ | D |
| 347930-INT (Obsolete) or AP347930 |
WFEL-8 (Obsolete) or WFEL-8-AP |
240/120 | 9.4 | 2 | 1.10 | 2.20 | CE | 2″ x 2″ | E |
| Three-Phase Super-Duty TEFC 50Hz | |||||||||
| 011643 or AP011643 |
WFK-8 or WFK-8-AP |
208-230/460 | 7.5-7.2/3.6 | 2 | 1.30 | 2.60 | NSF | 2″ x 2″ | I |
| 011644 or AP011644 |
WFK-12 or WFK-12-AP |
208-230/460 | 9.8-9.4/4.7 | 3 | 1.15 | 3.45 | NSF | 2″ x 2″ | J |
| Single Phase Energy Efficient 60Hz | |||||||||
| AP011516 | WFE-12-AP | 208-230 | 15.0-13.6 | 3 | 1.15 | 3.45 | CE | 2″ x 2″ | K |
| Efficient Two Speed 3450rpm, Low Speed 1725rpm Up Rated | |||||||||
| 011525 | WFDS-30 | Model is now obsolete | |||||||
| Country of Origin: Australia | High Performance Single Phase | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Product Code | Model | Voltage | Full Load Amps | Nominal Power [hp] |
Power Input [P1, W] |
Power Output [P2, W] |
Locked Rotor Current [A] |
Capacitor [μF] |
|

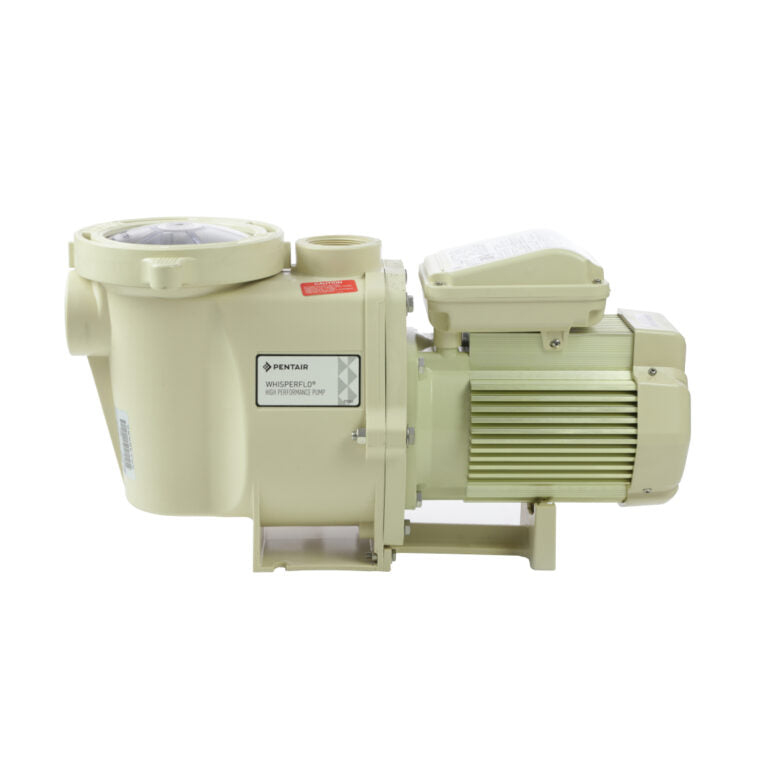

| WHFL-1500-1P | WhisperFlo 1500 | 230-240 | 6.3 | 2 | 1490 | 1120 | 28 | 35 | |
