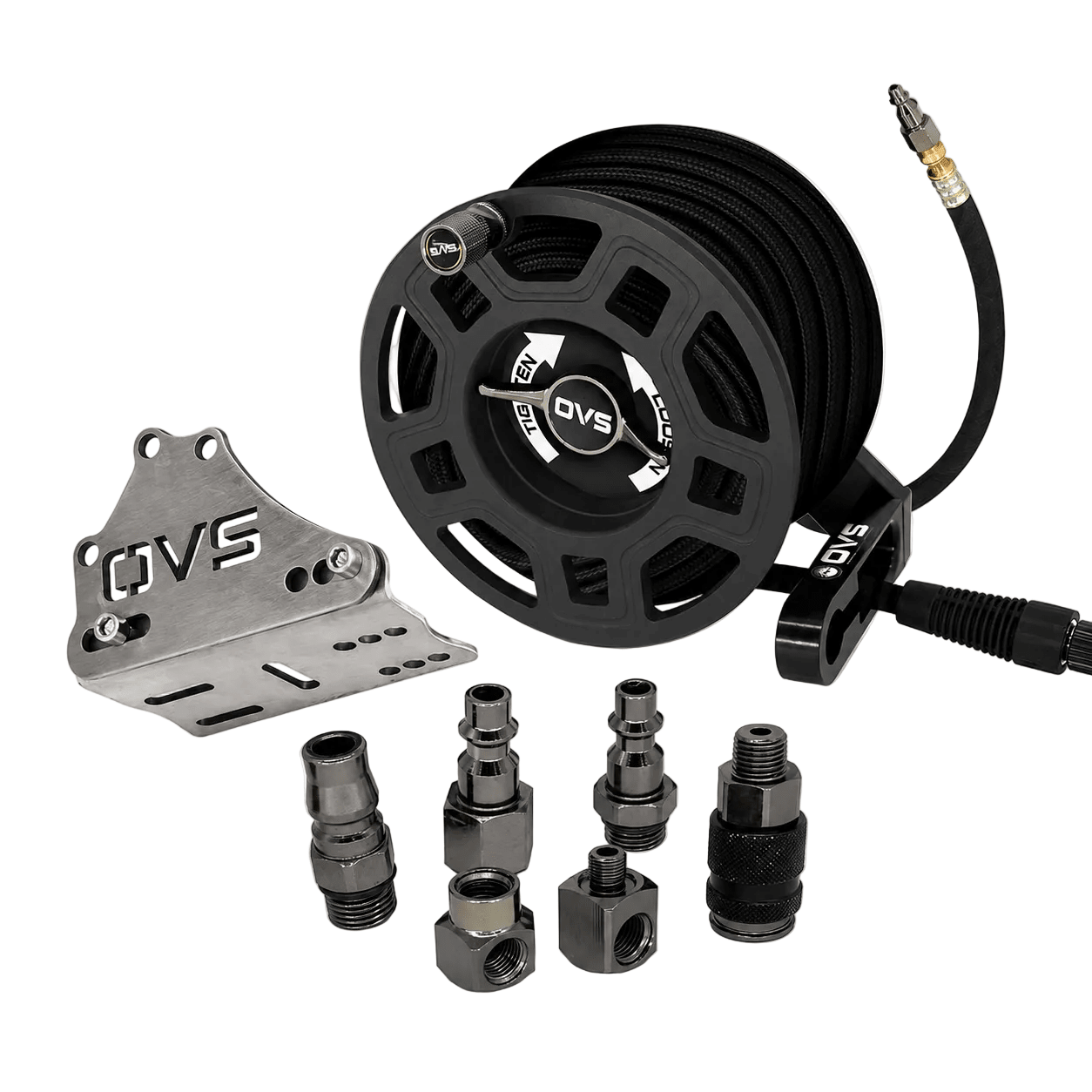

OVS Air Reel Kit (ARK) - 39 Foot Quick Reel Hose with Mounting Bracket

Features

• Retractable Tangle-Free Design: The self-retracting reel keeps your air line clean, organized, and out of the dirt — no more coiling loose hose after every tire fill or leaving it to get kinked and cut in the truck bed.
• 39ft of Reach: A full 39 feet of hose gives you plenty of length to reach all four tires from a central mount, plus air up trailer tires, run pneumatic tools, or top off camp gear without repositioning your vehicle or compressor.
• Stainless Steel Braided Hose with PVC Sheath: Premium hose construction combines stainless braiding, a rubber core, and a protective PVC sheath — engineered to resist abrasion, UV damage, and high-pressure fatigue for a long service life.
• Dual Swivel Joints: Prevents kinking and hose twist under high-pressure use, keeping your air line flowing smoothly and extending the life of the hose.
• Heavy-Duty Retraction Spring: Precision-tuned spring delivers smooth, controlled retraction — no whipping, no jerking, no risk to your hands or gear.
• 350 PSI Max Supply Pressure: Rated to handle high-output off-road compressors and shop-grade pneumatic systems without pressure loss or hose failure.
• 6061 Aluminum Reel Construction: Lightweight, corrosion-resistant, and built for the punishment of trail travel and workshop abuse.
• SUS 304 Marine-Grade Stainless Bracket & Hardware: Corrosion-resistant mounting components stand up to weather, mud, and salt exposure — perfect for permanent vehicle mounts.
• Flexible Mounting Options: Mount to a garage wall, bed rack, crossbar, MOLLE panel, or directly to your vehicle — wherever you need clean, tangle-free air delivery.
• US Standard Quick-Connect Fittings: Compatible with EGOI Digital Air Compressors and most onboard and portable compressor systems using standard US quick-connect fittings.
• Compact Footprint: 6.5" diameter and just 4" wide (not including bracket) — maximizes storage efficiency in tight spaces.

FAQ

• How long is the retractable hose? The ARK Air Reel Kit includes a full 39-foot retractable hose — plenty of length to reach all four tires from a central mount, air up trailer tires, or run pneumatic tools without repositioning your vehicle.
• What is the maximum pressure rating? The reel is rated for a maximum supply pressure of 350 PSI, with the compressor lead hose rated for 406 PSI working pressure and 1625 PSI burst pressure. This makes it suitable for high-output off-road compressors and shop-grade pneumatic systems.
• Is the ARK Reel compatible with my air compressor? The ARK Reel uses US Standard quick-connect fittings and is compatible with EGOI Digital Air Compressors as well as most onboard and portable compressors. Check that your compressor uses US standard quick-connect fittings for a plug-and-play connection.
• Where can I mount the reel? The included SUS 304 stainless bracket gives you flexible mounting options: garage or shop wall, vehicle bed rack, roof rack crossbar, MOLLE panel, or directly to your vehicle. All mounting hardware is marine-grade stainless for long-term corrosion resistance.
• What's the reel made of? The reel body is built from 6061 aluminum for a lightweight, corrosion-resistant construction. The hose uses a stainless steel braided sheath over a rubber core with a protective PVC outer sheath. Mounting components are SUS 304 stainless steel.
• Does the hose retract automatically? Yes. A heavy-duty internal spring delivers smooth, controlled retraction. Pull out the hose length you need, and it retracts cleanly when you're done.
• Will the hose kink or twist under pressure? No. Dual swivel joints are engineered specifically to prevent kinking and hose twist under high-pressure use, extending the hose's service life.
• Is it accurate enough for airing up to a specific PSI? Yes. The system operates at +/-1 PSI accuracy in the 25–75 PSI range — the sweet spot for most on- and off-road tire pressures.
• Can I use this in my garage or shop as well as on my vehicle? Absolutely. The ARK Air Reel is equally at home in shop and off-road applications. The included bracket and marine-grade hardware make it suitable for both permanent garage installations and vehicle-mounted overland setups.
• What warranty is included? The ARK Air Reel Kit is backed by a 2-Year Limited Warranty covering defects in materials and workmanship.
