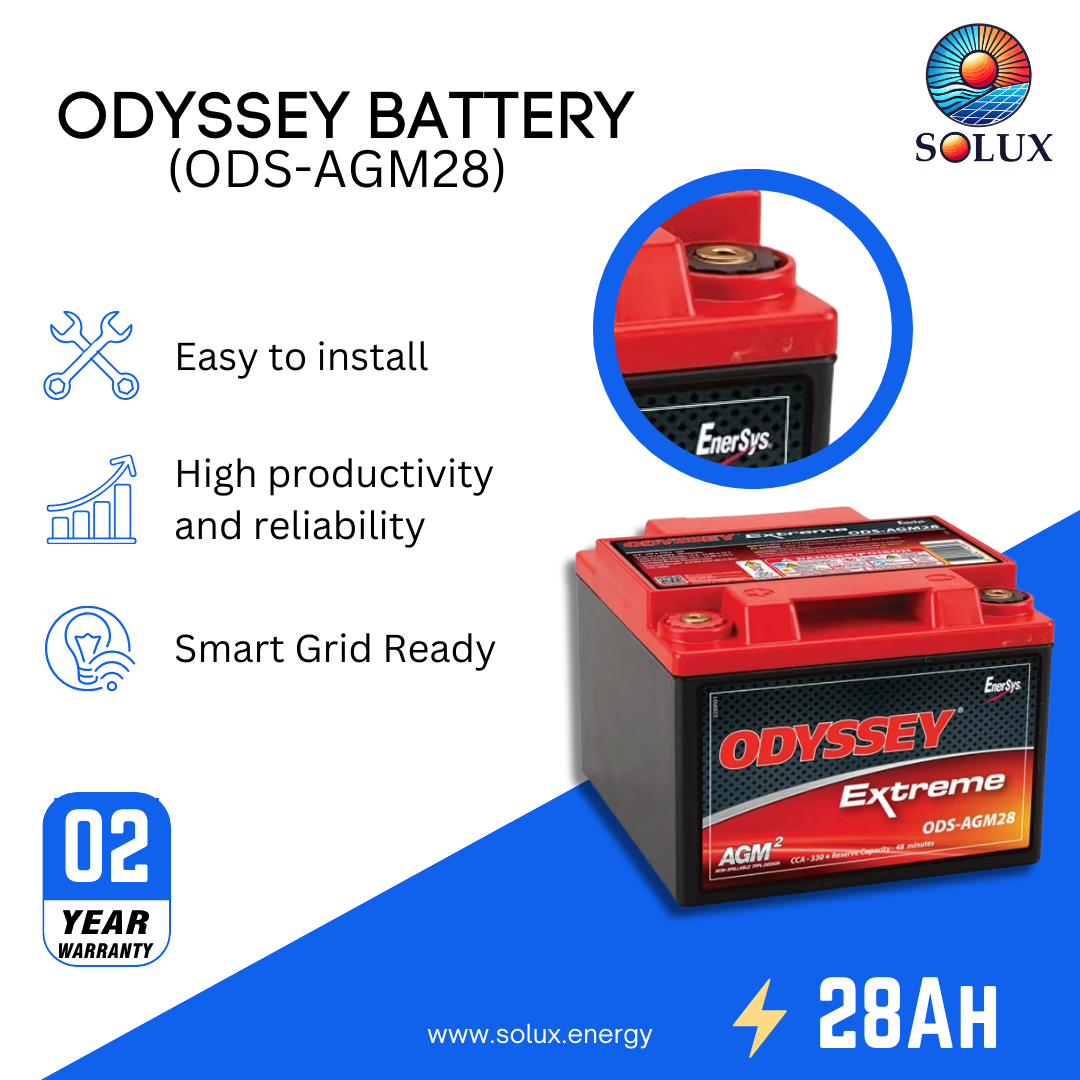

Odyssey Battery ODS-AGM28 28Ah Extreme Series AGM Battery

Odyssey Battery ODS-AGM28 28Ah Extreme Series AGM Battery

Whether for everyday or emergency use, today’s vehicles are loaded with more electronics than would have been imaginable just a few years ago. ODYSSEY batteries have been designed to keep up with the changes. Because their plates are made of pure virgin lead (unlike the lead alloy in most batteries), we can pack in more plates. And more plates mean more plate surface area, and much more power – twice the overall power and three times the life of conventional batteries – up to 400 cycles at 80% depth of discharge!

Technical Specifications:

• Length: 6.60 in
• Width: 6.90 in
• Height (terminals included): 4.70 in
• Height (container): 5.00 in
• Voltage: 12V
• Pulse (5 second) Hot Cranking Amps (PHCA): 900A
• Cold Cranking Amps (CCA): 330A
• HCA: 610A
• MCA: 480A
• 20Hr Nominal Capacity (Ah): 28Ah
• 10Hr Nominal Capacity (Ah): 27Ah
• Torque Spec in-lbs (Nm max): 60 (6.8)
• Terminal: M6 Receptacle
• Internal Resistance (mΩ): 5 mΩ
• Short Circuit (A): 2400A
• Recommended Min. Charging Current (A): 2.7A
• Operating Temperature Range: -40°F / -40°C to 113°F / +45°C
• Optimum Storage Temperature: 68°F / +20°C
• UPC: 635241141061
