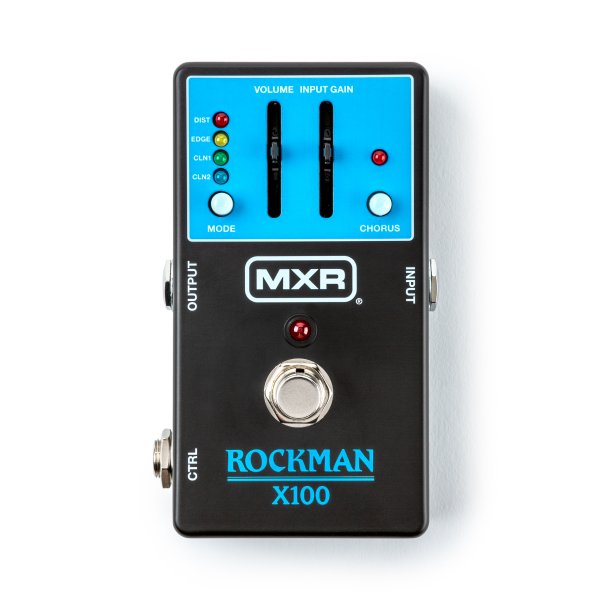

MXR Rockman X100 Analog Tone Processor

The MXR Rockman X100 Analog Tone Processor revives the signature sonic character of Tom Scholz’s celebrated headphone amp and signal processor in pedal form. Offering crystalline cleans, crunchy harmonics, and shimmering modulation, the original X100 unit defined the sound of arena rock. This faithful, all-analog recreation features the same four tonal presets, carefully calibrated compression for a clear sound whether clean or distorted, the same bucket-brigade chorusing as the original, both mono and stereo modes, and optional external mode switching for an enhanced user experience.

Power
The MXR® Rockman® X100 Analog Tone Processor requires 9 volts and can be powered by a Dunlop ECB003 9-volt adapter or an MXR® Brick™ Series  power supply.

INTERNAL MONO/STEREO OUTPUT SWITCH
Remove bottom plate to access. This switch toggles between mono mode (default) and stereo mode at the OUTPUT jack.
MONO MODE: Entire signal goes to OUTPUT jack. Use a standard instrument cable.
STEREO MODE: When using a TRS splitter cable, the selected MODE preset will be split evenly to both channels. If CHORUS effect is engaged, the effect will be varied on the left and right channels for a more spacious and dynamic effect. Note: If using a standard (mono) instrument cable in stereo mode, the pedal will work as if in mono mode but the signal will be cut when pedal is bypassed.

ALTERNATE SETUP OPTIONS
The Rockman X100 Analog Tone Processor is designed to enhance your tone through any setup. But if you want a subtler high-end response, try running the pedal into the return of your amp’s FX loop or a full-range/flat-response speaker system.
