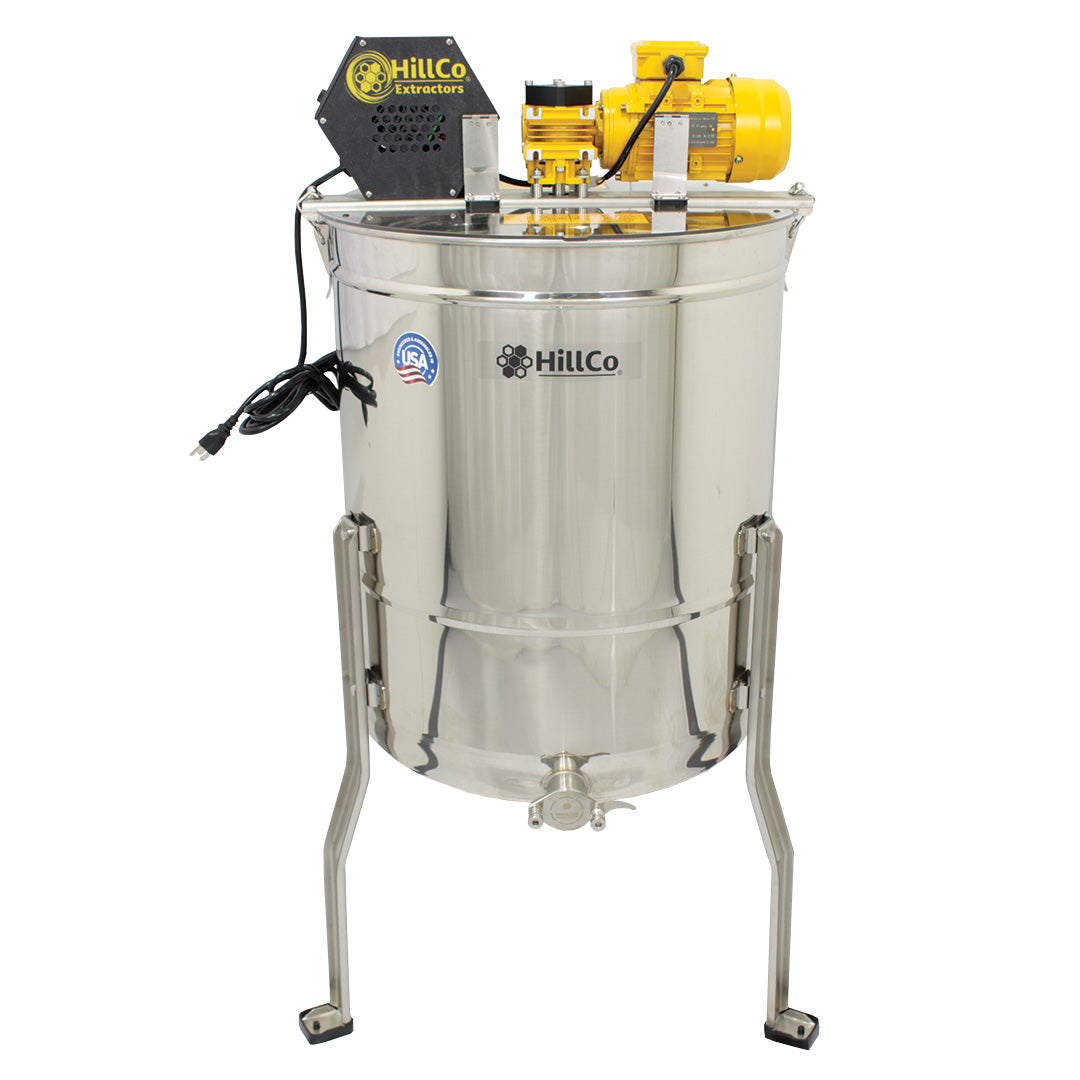

Layens Frame Extractor

You asked for it, and we delivered! If you're someone who uses the Layens hive design, we have a great extractor for you!

A compact, top notch machine that extracts Layens hive frames. In addition to extracting 3 Layens frames per load, it also has flexibility to extract Langstroth frames as well!

Features of this fine machine include:

• Proven HillCo PowerMax drive system: an industrial grade motor, gearbox, and controller. Smooth, quiet and durable, it's a great combination of simplicity and refinement. This is the same design that we use all the way up to our big 32 frame extractors!
• 22 gauge, type 304 stainless steel tank
• Ez-Drain honey gate design: the honey drain valve is located slightly below the tank floor, giving you a complete, seamless honey drain.
• HillCo-exclusive tank bottom that slopes towards the front, ensuring that all your honey flows smoothly towards the gate. No tipping the tank, no hassle, it just works!
• Industry exclusive 4/10 warranty: motor, gearbox, controller, and wiring are guaranteed for 4 years. The rest of the machine (tank, legs, lower bearing, reel, etc), are guaranteed for 10 years! We have engineered a quality product and we will stand behind it!
• Designed and assembled in USA by HillCo!

Other features/specs:

• 1/4 horsepower PowerMax motor, 5:1 ratio worm-drive gearbox
• Extracts 3 Layens frames, or 3 deep Langstroth frames, or 6 medium/shallow Langstroth frames, all tangentially (meaning you extract each side of the frame separately)
• Grease-able lower bearing
• Rubber feet to protect your floor
• 5 gallon bucket and strainer fit below the honey gate
• Tank diameter - 21"
• Width (at widest point of legs) - 29"
• Overall height - 48"

Ships by UPS or FedEx Ground.
