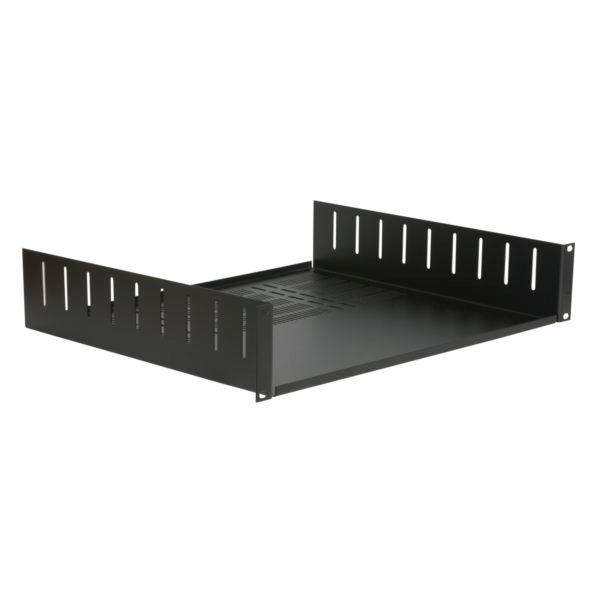

USVC Series: Utility Shelf w/Vents, Clamps 2U–4U

A 19 inch rack mount utility shelf with fully vented base for passive ventilation. In addition, the shelf has clamps to help keep equipment in place.

FEATURES

• Height:  2U, 3U, or 4U
• Width:  19 in. (17.312 in. useable)
• Depth:  15 in.
• Material:  16-gauge steel with fully vented base
• Finish:  Black semi-gloss
• Front and Rear Flanges:  0.438 in.
• Load Capacity:  50 lbs.
• Clamping brackets
• Rear angle stops

COMPLIANCE & CERTIFICATION

• Made in the U.S.A.
• Certified U.S. steel
• E.I.A. compliant


A&E SPECIFICATIONS

• The rackmount shelf shall be Lowell Model No. USVC- _____, which shall measure 19"W x 15"D x ____U. It shall feature two adjustable-height clamping brackets, two rear angle stops, side and bottom vents, and front and rear flanges (0.438"). Load capacity shall be 50 lbs. The shelf shall have a black semi-gloss powder epoxy finish and be made in the U.S.A. with 16-gauge certified U.S. steel.
