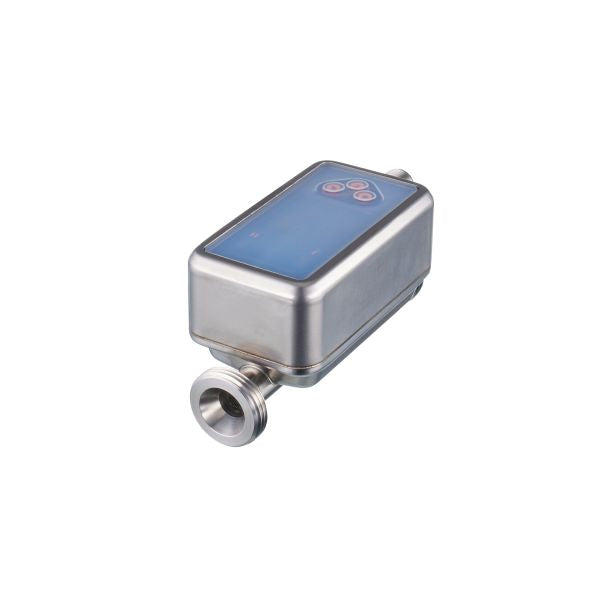

Ifm SU7031 Ultrasonic Flow Meter
Regular price
$582.22
Sale price
$582.22
Regular price
Unit price
-
Free Shipping & Returns: On all orders over $60
Ifm SU7031 Ultrasonic Flow Meter
Regular price
$582.22
Sale price
$582.22
Regular price
Unit price
Product description
Shipping & Return
Product characteristics
| Measuring range |
|
||||
|---|---|---|---|---|---|
| Process connection | G 3/4 DN20 external thread |
Application
| System | gold-plated contacts | |||
|---|---|---|---|---|
| Media | ultra-pure water; water; water-based media; glycol solutions; oils; Coolants | |||
| Note on media |
|
|||
| Medium temperature |
|
|||
| Min. bursting pressure |
|
|||
| Pressure rating |
|
|||
| Vacuum resistance [mbar] | -1000 |
Electrical data
| Operating voltage [V] | 18...32 DC; (to SELV/PELV) |
|---|---|
| Current consumption [mA] | < 75 |
| Protection class | III |
| Reverse polarity protection | yes |
| Power-on delay time [s] | 5 |
| Measuring principle | ultrasonic |
Inputs
| Inputs | counter reset |
|---|
Outputs
| Total number of outputs | 2 |
|---|---|
| Output signal | switching signal; pulse signal; analog signal; IO-Link; frequency signal; diagnostic signal; totalizer switching signal |
| Electrical design | PNP/NPN |
| Output function | normally open / closed; (configurable) |
| Max. voltage drop switching output DC [V] | 2 |
| Permanent current rating of switching output DC [mA] | 100 |
| Switching frequency DC [Hz] | 0...10000 |
| Analog current output [mA] | 4...20 |
| Max. load [Ω] | 500 |
| Pulse output | flow rate meter |
| Short-circuit protection | yes |
| Type of short-circuit protection | yes (non-latching) |
| Overload protection | yes |
Measuring/setting range
| Measuring range |
|
||||
|---|---|---|---|---|---|
| Display range |
|
||||
| Resolution |
|
||||
| Set point SP |
|
||||
| Reset point rP |
|
||||
| Analog start point ASP |
|
||||
| Analog end point AEP |
|
||||
| Low flow cut-off LFC |
|
||||
| Frequency end point, FEP |
|
||||
| Frequency at the end point FRP [Hz] | 1...10000 |
Volumetric flow quantity monitoring
| Pulse length [s] | 0.002...2 |
|---|---|
| Pulse value | 0.02...99990000 l; 0.005...26414563.515 gal |
Temperature monitoring
| Measuring range |
|
||
|---|---|---|---|
| Display range |
|
||
| Resolution |
|
||
| Set point SP |
|
||
| Reset point rP |
|
||
| Analog start point |
|
||
| Analog end point |
