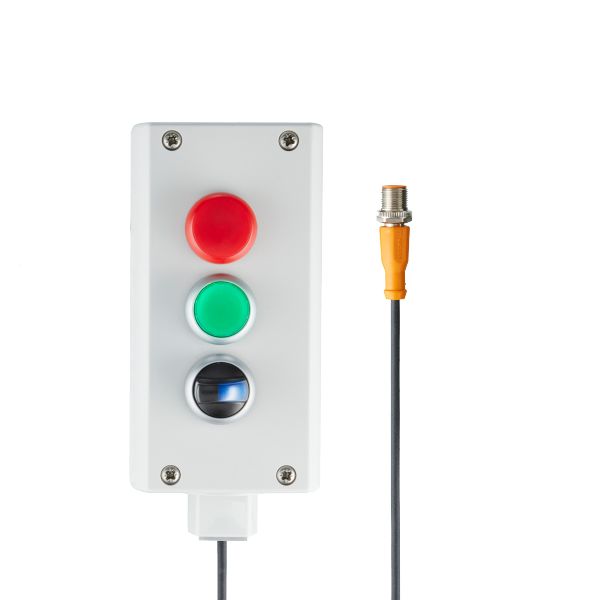

Ifm AL5021 Io-Link Input/Output Module
Regular price
$133.34
Sale price
$133.34
Regular price
Unit price
-
Free Shipping & Returns: On all orders over $60
Ifm AL5021 Io-Link Input/Output Module
Regular price
$133.34
Sale price
$133.34
Regular price
Unit price
Product description
Shipping & Return
Application
| System | Halogen-free; gold-plated contacts |
|---|
Electrical data
| Operating voltage [V] | 18...30 DC |
|---|---|
| Current consumption [mA] | 50...1050; (US) |
| Protection class | III |
Inputs / outputs
| Total number of inputs and outputs | 16 |
|---|---|
| Number of inputs and outputs | Number of digital inputs: 16; Number of digital outputs: 16 |
Inputs
| Number of digital inputs | 16; (configurable) |
|---|---|
| Input circuit of digital inputs | PNP |
| Sensor supply of the inputs | US |
| Voltage supply [V] | 18...30 |
Outputs
| Number of digital outputs | 16; (configurable) |
|---|---|
| Max. current load outputs total [A] | 1 |
| Short-circuit protection | yes |
| Actuator supply outputs | US |
Interfaces
| Communication interface | IO-Link | ||||
|---|---|---|---|---|---|
| SDCI standard | IEC 61131-9 | ||||
| Transmission type | COM3 (230,4 kBaud) | ||||
| IO-Link revision | 1.1 | ||||
| SIO mode | no | ||||
| Required master port class | A | ||||
| Min. process cycle time [ms] | 1 | ||||
| Supported DeviceIDs |
|
||||
| Note |
|
Operating conditions
| Ambient temperature [°C] | -25...60 |
|---|---|
| Storage temperature [°C] | -25...70 |
| Max. relative air humidity [%] | 90 |
| Max. height above sea level [m] | 2000 |
| Protection | IP 67 |
Tests / approvals
| EMC |
|
||||||||
|---|---|---|---|---|---|---|---|---|---|
| Shock resistance |
|
||||||||
| Vibration resistance |
|
Mechanical data
| Weight [g] | 233 |
|---|---|
| Dimensions [mm] | 107 x 35.4 x 15.1 |
| Material | housing: PA orange |
Displays / operating elements
| Display |
|
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection - IO-Link
| X1 | Cable: 2 m, PUR, Halogen-free, black, Ø 4.3 mm; 3 x 0.34 mm² (42 x Ø 0.1 mm ) |
|---|---|
| X1 | Connector: 1 x M12, straight; coding: A; Moulded body: brass, nickel-plated; Contacts: gold-plated; Tightening torque: 0.6...1.5 Nm |
Electrical connection - inputs / outputs
| Connection | Cable: 1.5 m, PUR, Halogen-free, black, Ø 6.0 mm; 18 x 0.25 mm² (32 x Ø 0.1 mm ) |
|---|
