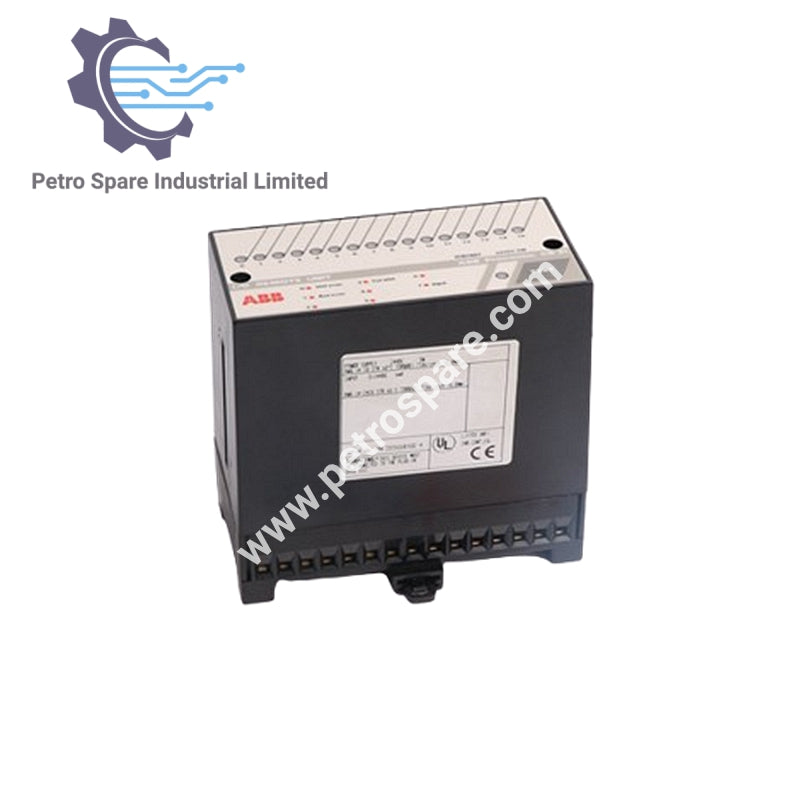

ICSI 16 D1 | ABB Binary Input Remote Unit ICSI16D1

Overview

ICSI 16 D1 is a 16-channel binary input unit from ABB, available in non-isolated (24 V DC) and isolated (120/230 V AC) versions, with configurable input delay.

Input and Power Supply

• Number of inputs: 16

• Input voltage (nominal): 24 V DC

• Signal level (0): -3 to +5 V

• Signal level (1): +15 to +30 V

• Input current (24 V DC): 6 mA

• Input delay: 2 to 32 ms (configurable)

• Open circuit detection: Yes

• Power supply options:

• 24 V DC (non-isolated)

• 120 V AC / 230 V AC (isolated, 1500 V isolation)

• Opto-isolation: No

Electrical Characteristics

• Supply output: Regulated 24 V DC ±5 %, 100 mA (non-isolated)

• Max power consumption:

• Non-isolated: 0.2 A

• Isolated: 10 VA

• Max power dissipation:

• Non-isolated: 4.5 W

• Isolated: 8 W

Mechanical Data

• Weight:

• Non-isolated: 0.25 kg

• Isolated: 0.43 kg
