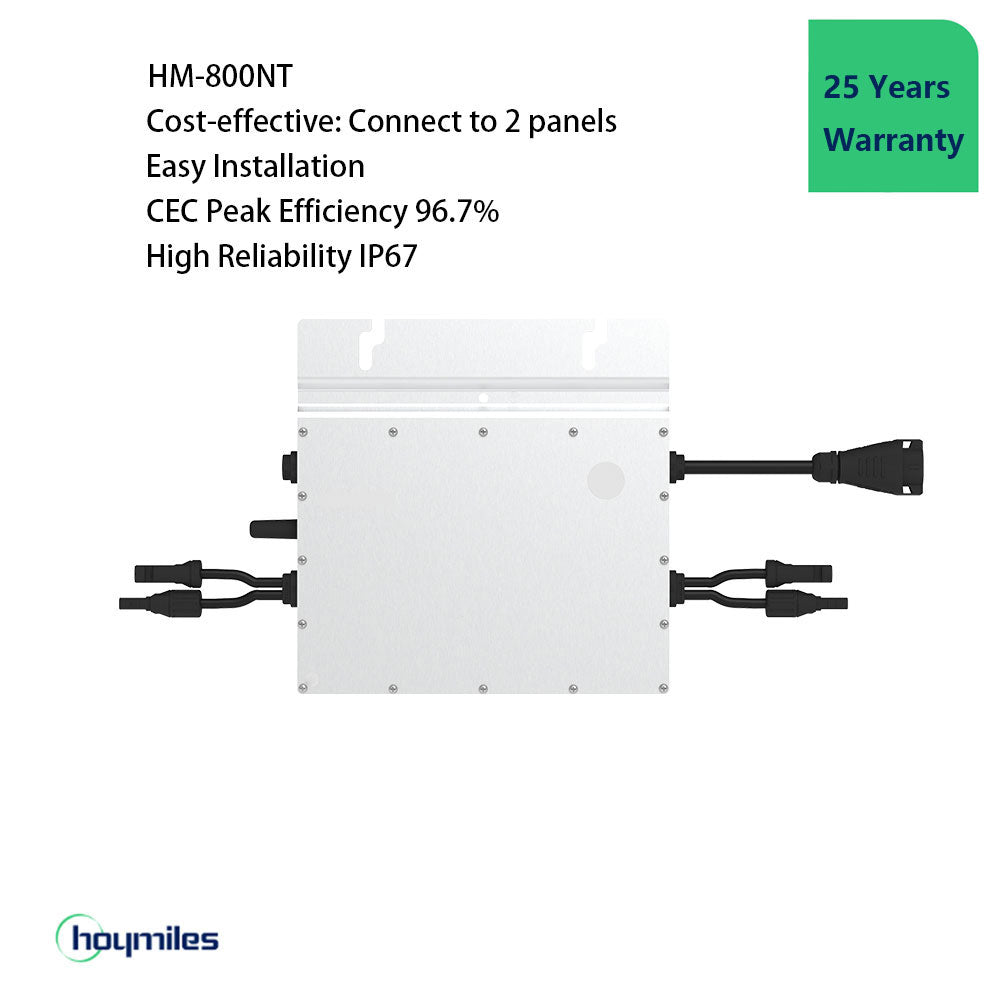

Hoymiles HM-800NT 2-in-1 Microinverter | Module Power 320-540W+ | Peak Output 800W
-
Estimated Delivery:Aug 01 - Aug 05
-
Free Shipping & Returns: On all orders over $60
Hoymiles HM-800NT 2-in-1 Microinverter | Module Power 320-540W+ | Peak Output 800W
Hoymiles HM-800NT 2-in-1 microinverter can connect up to 2 panels at once and maximize the PV production of your installation. With a maximum DC voltage of 60 V, the Hoymiles microinverter is a PV Rapid Shutdown Equipment and conforms with NEC-2017 and NEC-2020 Article 690.12 and CEC-2021 Sec 64-218.
HM-800NT is equipped with reactive power control and can meet the requirements of IEEE 1547, UL 1741, and CA Rule 21.
Product Overview
| Manufacturer | Hoymiles |
| Type | Single-Phase Grid-Tie |
| CEC Peak Efficiency | 96.7% |
| Module Power used | 320~540W+ |
| Weight | 5.37lbs ( 2.6kg ) |
| Enclosure rating | IP67( Outdoor-NEMA6) |
| Warranty | 25 years |
| Compliance | UL 1741, IEEE 1547, UL 1741 SA (240 Vac), CA Rule 21 (240 Vac), CSA C22.2 No. 107.1-16, FCC Part 15B, FCC Part 15C |
| RV Rapid Shutdown | Conforms with NEC-2017 and NEC-2020 Article 690.12 and CEC-2021 Sec 64-218 Rapid Shutdown of PV Systems |
Key Features
- Easy installation, just plug and play
- With Reactive Power Control, compliant with CA Rule 21
- Compliant with U.S. NEC-2017&NEC-2020 690.12 Rapid shutdown
- External antenna for stronger communication with DTU
- High reliability: NEMA 6( IP67 ) enclosure, 6000V surge protection
Product Specification
Input Data
- Maximum Input Voltage: 60V
- MPPT Voltage Range: 16~60V
- Maximum Input Current: 2 * 11.5A
- Number of MPPTs: 2
Output Data
- Peak output power(VA): 800
- Max. continuous output power(VA): 766
Efficiency
- CEC peak efficiency: 96.7%
- CEC weighted efficiency: 96.5%
- Nominal MPPT efficiency: 99.8%
Mechanical Data
- Dimensions (W * H * D): 9.84*6.69*1.10 inches (250* 170* 28 mm )
- Weight: 5.37 lbs ( 2.6kg )
- Enclosure rating: IP67( Outdoor-NEMA6)
Download
Datasheet:
Datasheet_HM-800-NT
User Manual & Guide
User manual_HM-600-700-800NT Series
Quick Installation Guide_HM-600-700-800NT Series
Certificate
HM-600-700-800-Series_UL1741_NA_Certificate
HM-600-700-800-Series_FCC-Part15B_NA_Certificate
About Hoymiles
Hoymiles is a global MLPE (Module Level Power Electronics) solution provider, specializing in module-level inverters and storage systems. With a vision of a clean, sustainable future, we strive to lead the smart energy industry through our rugged technology and reliable products.
With our driven engineer team, 1200+ global experts, and distribution & service network spanning North America, South America, Europe, Asia, Africa, and Oceania, Hoymiles has empowered homeowners and professionals in more than 100 countries and regions to join the journey to true open energy.
