- FRAME: RADIO "GRIFFIN PRO" frame, 6061-T6 hydroformed & butted alloy, tapered head tube, forged yoke
- FORK: RST “SHINE AIR” 100mm travel
- HANDLEBAR: ARISE "GRIFFIN" bar, 6061-T6 alloy, 31.8mm
- GRIPS: RADIO "FREQUENCY XL" grips, flangeless, 160mm
- STEM: RACE FACE "CHESTER" frontload stem, alloy, 50mm reach
- HEADSET: FSA "NO.42/ACB-A" integrated A-headset, 1-1/8"-1.5"
- BRAKE LEVER: TEKTRO "RS-360A" front lever / SRAM "DB-LVL-A1" rear lever
- BRAKE: TEKTRO "ARIES" mechanical disc brake, 160mm rotor, front / SRAM "DB-LVL-A1" hydraulic disc brake, 160mm rotor, rear
- CRANK: RACE FACE "AEFFECT" crank, alloy, 170mm
- BB: RACE FACE "AEFFECT" BSA bb set, sealed bearing
- PEDALS: RADIO "SLIM" pedals, nylon/fiberglass
- CHAIN: SALT "AM" chain, WZ1 type
- SPROCKET: RACE FACE "AEFFECT" sprocket, alloy, 28t
- DRIVER: cassette driver, 10t, sealed bearing
- FRONT HUB: RADIO "PRO-DJ" disc hub, alloy, sealed, 15mm alloy through axle, 32h
- REAR HUB: RADIO "PRO-DJ" disc hub, alloy, sealed, 3/8"s crmo axle, 32h
- FRONT RIM: ARISE "DB-T25" rim, double wall, sleeved
- REAR RIM: ARISE "DB-T25" rim, double wall, sleeved
- SEAT: RADIO “CENTURY” pivotal seat, fat padded
- SEAT POST: RADIO "PIVOTAL" seat post, alloy
- SEAT CLAMP: RADIO "SLIM" seat clamp, alloy
- TIRES: MAXXIS "DTH" tires, 2.3", front & rear

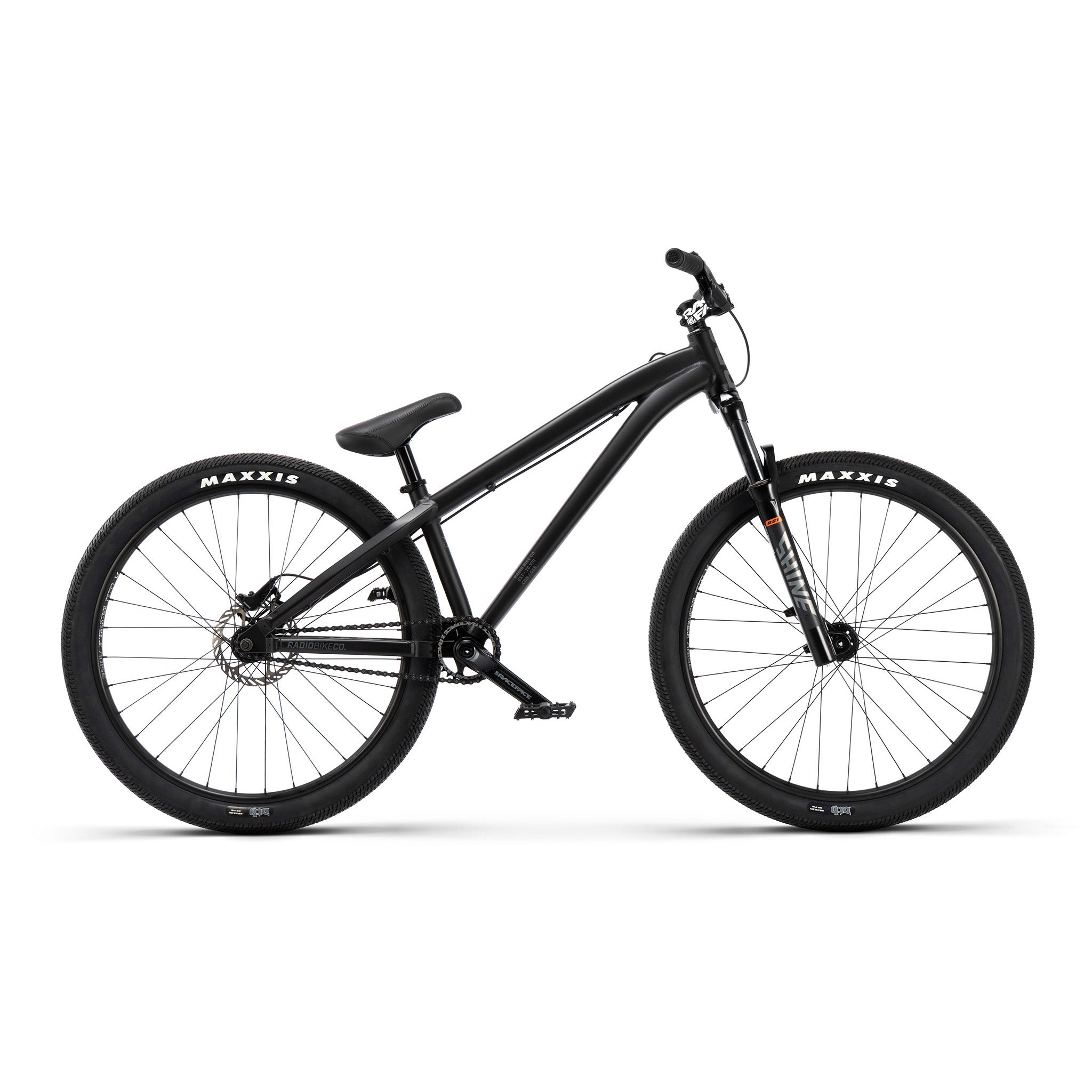

Griffin Pro 26" Complete
Regular price
$499.00
Sale price
$499.00
Regular price
Unit price
-
Free Shipping & Returns: On all orders over $60
Griffin Pro 26" Complete
Product description
Shipping & Return
The Griffin PRO is our ultimate 26" dirt jump weapon. Featuring a super-light, ultra-stiff 6061-T6 aluminium frame, an RST Shine Air 100mm fork, and premium components from Race Face and Maxxis, it's built for riders who demand the very best from their equipment. Wrapped in a sleek blacked-out finish, the Griffin PRO is fast, aggressive, and ready to take on whatever lies ahead.
Weight: 12.02kg / 26.49lbs
Frame Geometry:
| Top Tube Length | 22.8" |
| Chain Stay Length | 15" |
| Head Tube Angle | 70° |
| Seat Tube Angle | 70° |
| Bottom Bracket Height | 14mm drop |
| Standover Height | 10.2" |
Handlebar Geometry:
| Rise | 50mm |
| Width | 760mm |
| Backsweep | 8° |
| Upsweep | 3° |
