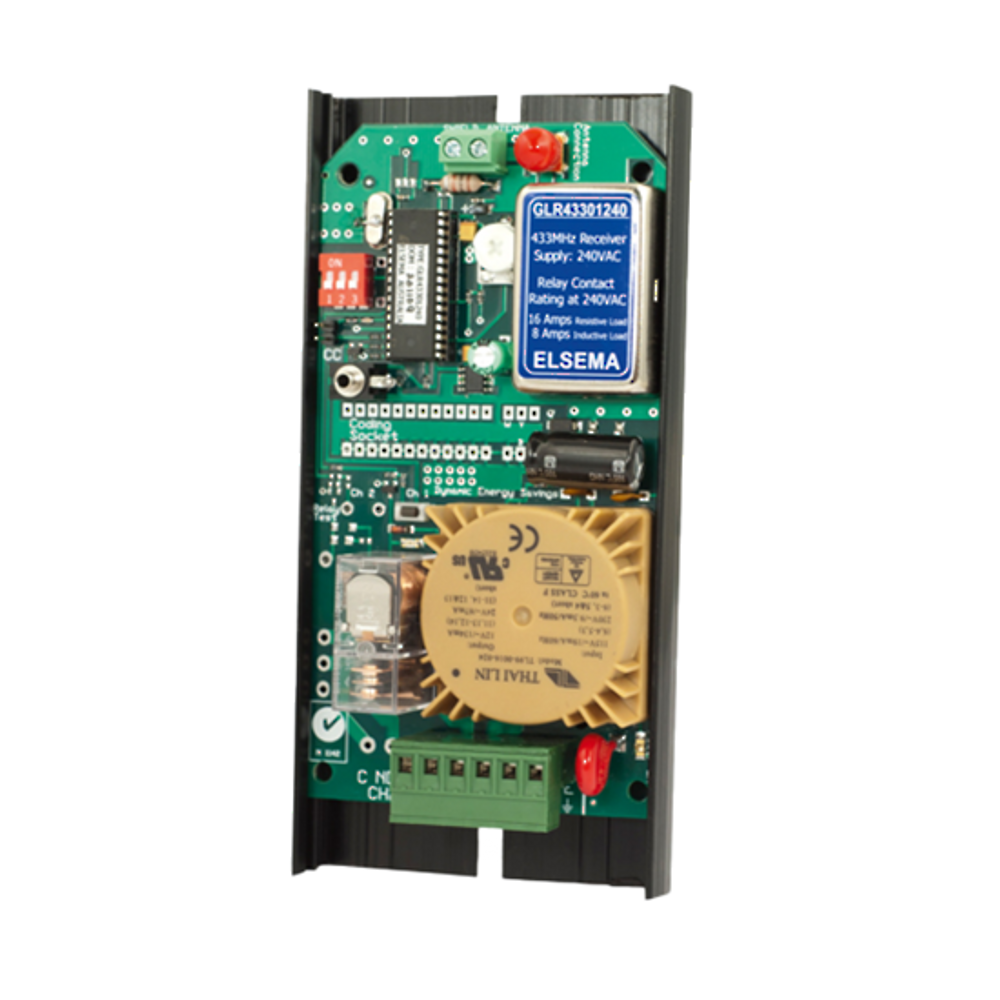

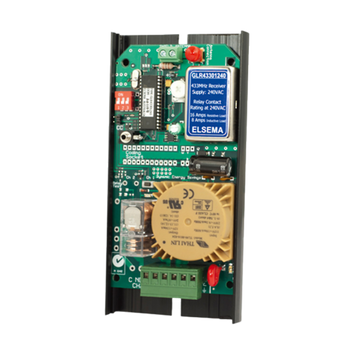

GLR43304240 Four Channel 433MHz Gigalink® Receiver

Four Channel 433MHz Gigalink® Receiver. GLR43304240


The Gigalink® 4-channel receiver, GLR43304240, is engineered for systems requiring a direct connection to a 240VAC mains supply, with an export version available for 110-120VAC in international markets. This receiver ensures a stable and reliable power source, delivering consistent performance across various applications. Loaded with features, the GLR43304240 enhances functionality while maintaining user-friendly operation. The relay status is indicated by a dedicated LED that lights up when the relay is active, providing clear visual confirmation, which is particularly useful during system troubleshooting.

The GLR43304240 receiver excels with its flexible relay operation modes. You can easily change the relay output to operate as momentary or latching by changing a dip-switch setting. The receiver also comes with an SMA connection to easy connect and external antenna for superior RF signal reception.

Security remains a key focus with the Gigalink® 4-channel receiver. It features an advanced micro-controller capable of storing an unlimited number of transmitters, each secured with an encrypted 32-bit digital code. This robust security measure ensures that only authorized transmitters can communicate with the receiver, preventing unauthorized access and enhancing overall system security.

For easy setup and configuration, the GLR43304240 receiver comes with a Gigalink® programming cable. This makes programming simple, allowing for easy integration into existing industrial or commercial systems, ensuring quick deployment and reliable operation.

Technical Specifications

Frequency
433MHz License free band

Usable Transmitters
Gigalink® series

Supply Voltage
240 Volts AC

Coding
Encrypted coding

Antenna
433MHz Series

Output Type
Voltage free relay output

Output Modes
Momentary & Latching

Output Rating
8 Amps at 240 Volts AC

Storage Capability
Unlimited Remotes

Dimension
165 x 70 x 35 mm

Compliance
Click here

User Manual
Click here

Warranty: 2 Year Return to Base Warranty
