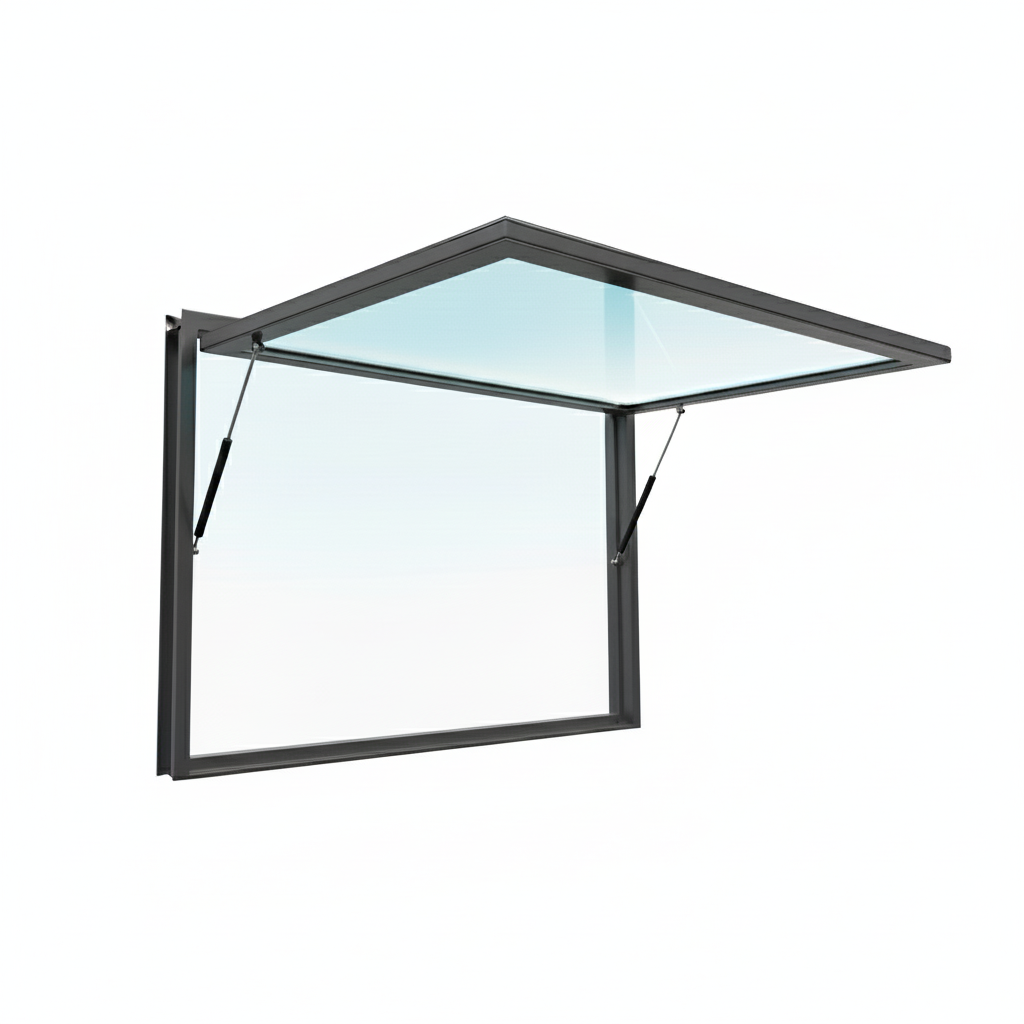

Gas Strut Window (OPEN OUT) 1350 H x 2100 W

DESCRIPTION: A great addition to residential and commercial buildings, this innovative window system offers a seamless transition from indoor to outdoor living spaces. The perfect combination of aesthetics and functionality, this new servery strut window can transform any room by maximising light, enhancing natural airflow & ventilation, and providing unobstructed views.

NOTE: Available in single glazed only - maximum sash weight of 50Kg.

KEY FEATURES

• 101.6mm Standard Frame depths
• Opens to 90 degree as standard
• Twin point non keyed internal Brio flush bolt locks as standard
• Single and double glazed options
• Includes commercial high grade gas struts
• Hardware and Handles are Black as standard

WHOLE WINDOW ENERGY PERFORMANCE

• Glass: 6mm Clear - U Value: 5.9 SHGC: 0.59
• Glass: 6mm Grey - U Value: 5.9 SHGC: 0.44

GLASS PERFORMANCE DATA

• Standard CLEAR Glass - U Value: 5.7 SHGC: 0.79
• GREY TINT Glass - U Value: 5.7 SHGC: 0.62
• Low E CLEAR Glass - U Value: 3.6 SHGC: 0.69
• Low E GREY TINT Glass - U Value: 3.6 SHGC: 0.50
• Acoustic Noise Reduction VLam Hush CLEAR Glass - U Value: 5.7 SHGC: 0.78
• Acoustic Noise Reduction VLam Hush GREY TINT Glass - U Value: 5.7 SHGC: 0.61

DOES YOUR WINDOW NEED TIMBER REVEALS?

A window reveal is used to fix the window itself into the stud wall frame. The main purpose of a reveal is to provide extra support to the aluminium frame of the window unit, no matter which types of reveals you choose. Mostly brick veneer wall structure or similar wall types will require a window reveal for installation. Alternatively you can order your window with a fin only that can be used for fixing or simply removed by snapping off if required.

Please note that all images are for illustrative purposes only and may not be an exact representation of the product.
