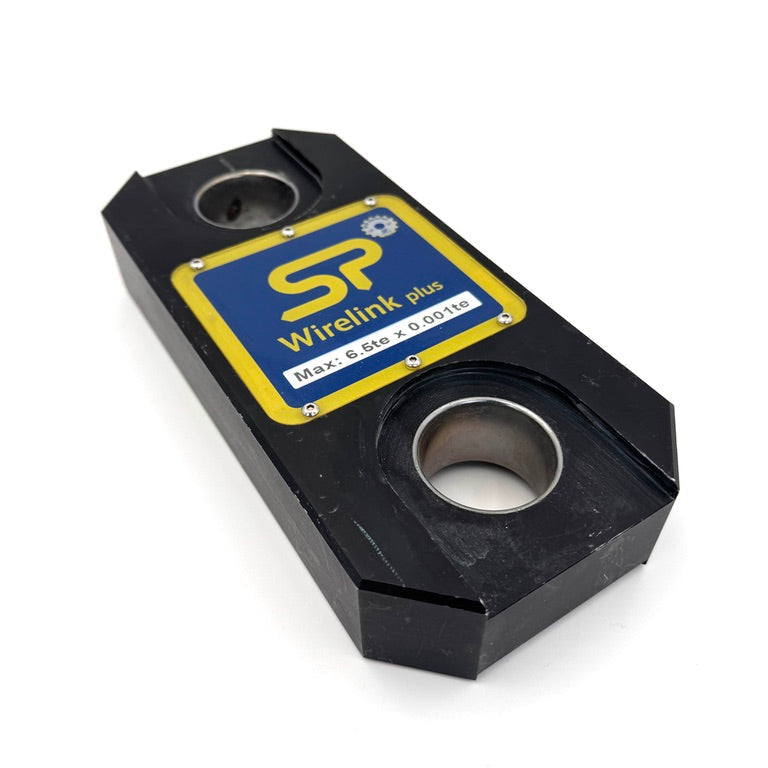

Crosby Straight Point WLP6T5 Wirelink Plus Load Cell

The Crosby Straightpoint WLP6T5 Wirelink Plus is a cabled tension load cell designed for accurate weighing and dynamic load monitoring. Below are its key technical specifications:

• Capacity: 6.5 tonnes (14,300 lbs)
• Resolution: 2 lbs (0.001 tonnes)
• Accuracy: ±0.1% of full scale
• Safety Factor: 7:1
• Material: Aerospace-grade aluminum with hard anodized finish
• Weight: Approximately 2.4 kg (5.3 lbs)
• Operating Temperature: -10°C to +50°C (14°F to 122°F)
• Environmental Protection: IP67 (NEMA 6) standard; IP68 available as an option
• Output Options: mV/V, RS-422, RS-485, ASCII, MODBUS RTU, and CAN-BUS protocols
• Cable Length: 10 meters (32 feet) standard; extendable up to 1,500 meters depending on output format
• Compatible Shackles: Designed for use with Crosby standard shackles; for example, the Crosby G2130-6.5t shackle is suitable for the 6.5t dynamometer

This load cell is commonly used in applications such as overhead weighing, cable tensioning, and heavy lifting. Its lightweight design and high accuracy make it suitable for various industrial environments.
