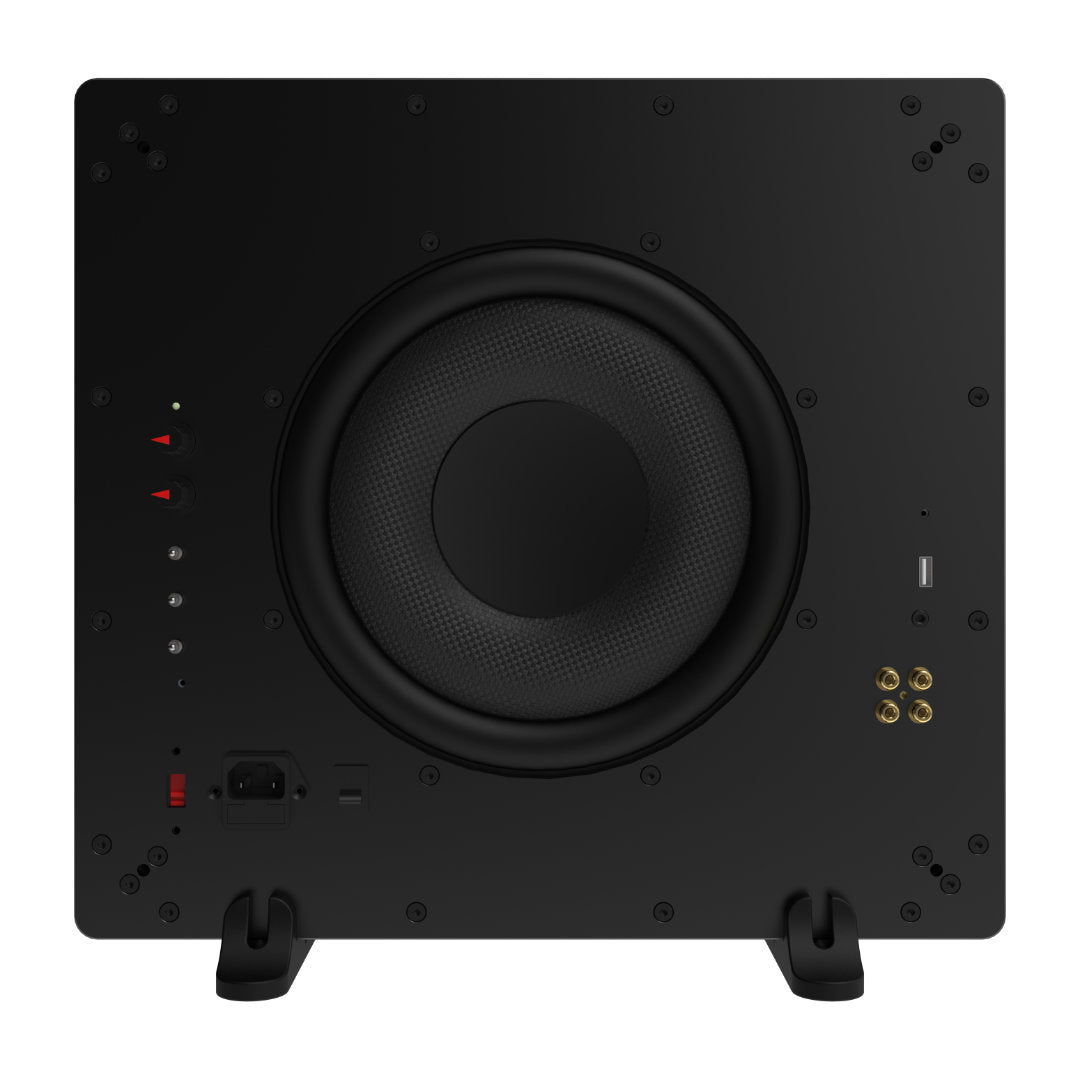

Crestron Ultimate ASUB10 10" Active Subwoofer

The Crestron Ultimate ASUB10 is a high-performance 10-inch active subwoofer designed for audiophile-quality sound in both residential and commercial environments. This subwoofer features a carbon fiber woofer and a built-in 200W amplifier, ensuring excellent sound clarity and powerful bass. The subwoofer's low-profile design allows for flexible installation options, including wall mounting or floorstanding placement, making it suitable for various locations, including behind or under furniture.

Key Features

• Audiophile quality active subwoofer
• Wall mount or floorstanding installation options
• Low profile (as low as 4.6 inches without grille) - fits under or behind furniture
• 200W program (400W peak) built-in power amplifier
• 10-inch carbon fiber woofer
• 35 Hz to 175 Hz (±3 dB) frequency response
• Built-in adjustable low pass filter with a bypass switch
• Auto On/Trigger switch allows the amplifier wake-up to be driven by audio or an external voltage trigger
• Wireless signal extender (SPKA-EXT-WIRELESS - sold separately) allows greater placement flexibility

Performance

The Crestron® Ultimate subwoofer made by Origin Acoustics delivers the pinnacle of performance for demanding residential installations. The ULTIMATE ASUB10-B-T-EACH is designed to produce deep, gratifying bass as a complement to Crestron Ultimate and Reference residential speakers. An internal, adjustable low pass filter with a bypass switch allows the subwoofer to be connected to a broad range of A/V sources. The Auto On/Trigger Switch on the subwoofer allows the built-in amplifier to either turn on based off audio signal detection or an external +12V trigger signal. A polarity switch also reduces phase coherence issues between the subwoofer and satellite speakers.

Specifications

• Woofer: 10-inch (254 mm) carbon fiber
• Frequency Response: 35 Hz to 175 Hz (±3 dB)
• Power RMS: 200W
• Power Peak: 400W
• Enclosure: Aluminum Cabinet

Weights & Dimensions

• Height without feet: 14.57 inches (370 mm)
• Height with feet: 15.20 inches (386 mm)
• Width: 15.75 inches (400 mm)
• Depth without Grille: 3.54 inches (90 mm)
• Depth without Grille (with Wall Mount): 4.60 inches (117 mm)
• Depth with Grille: 4.69 inches (119 mm)
• Weight: 21.21 lb (9.6 kg)
