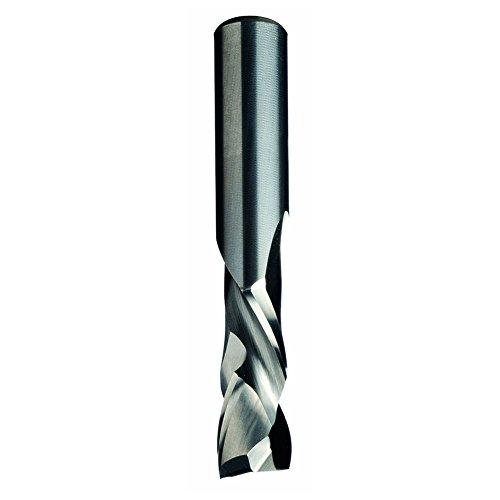

CMT 190.813.11 Solid Carbide Up/Downcut Spiral Mortising Bit 3/8" RH

The CMT 190.813.11 is a Up/Downcut Spiral Router Bit. Up/downcut spiral bits are compression bits that cut upward and downward simultaneously for chip-free faces on both sides -- ideal for CNC through-cuts in plywood, MDF, and laminates.

SPECIFICATIONS

• Diameter (D) 3/8"
• Cutting Height (I) 1"
• Cutting Height I1 13/64"
• Total Length (L) 3"
• Shank (S) 3/8"
• Number of Teeth 3 + 3
• Product Type Up/Downcut Spiral Router Bit
• Shank 1/4"
• Blade Material Solid Carbide
• Rotation Right-hand (RH)
• Country of Origin Made in Italy

COMPATIBLE MACHINES

• CNC Routing Machine
• Router Table
• Handheld Router

APPLICATIONS

• CNC Routing
• Through-Cuts in Plywood and MDF
• Two-Face Finish Cuts

COMPATIBLE MATERIALS

• Solid Hardwood
• Softwood
• Plywood
• MDF
• Chipboard
• Laminates
• Melamine
• Plastic

KEY FEATURES

• Solid Carbide Construction Entirely manufactured from premium micrograin carbide for superior wear resistance, allowing more resharpenings than carbide-tipped bits.
• CMT Orange Shield(R) Non-Stick Coating Prevents bit from heating up, reduces pitch and resin buildup, protects against corrosion, and extends tool life.
• Up/Downcut Compression Geometry Simultaneous upcut and downcut spiral cuts both faces of the workpiece cleanly, eliminating tearout on both the top and bottom.
