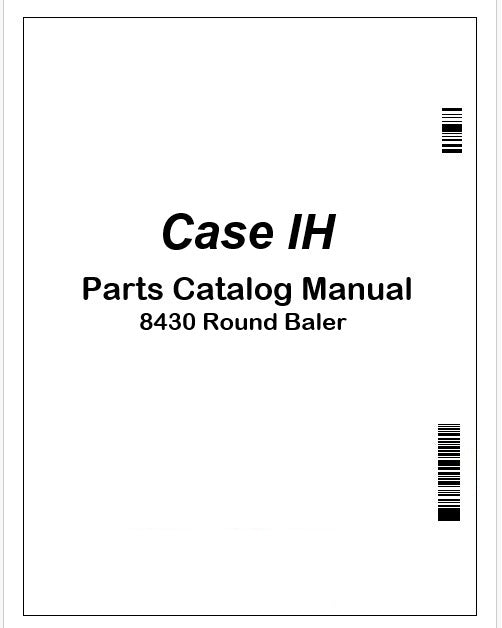

Case IH 8430 Round Baler Parts Catalog Manual Instant PDF

Maintaining your Case IH 8430 Round Baler is much simpler when you have the right technical data. This official parts catalog PDF provides high-resolution exploded diagrams and verified OEM part numbers, allowing you to source components with total confidence. Instead of spending hours on the phone with a dealership or risking an incorrect order, you can look up every bearing, belt, and pickup component yourself.

The digital guide is organized for quick navigation across all systems:

• Pickup and Drive: Clear views for timing and mechanism repairs.

• Belts and Rollers: Detailed layouts for tensioners and chains.

• Hydraulics: Accurate mapping for cylinders and hoses.

• Binding System: Full lists for twine and wrap components.

Since this is a digital download, you can save the file to your phone or tablet for instant access in the barn or field. The PDF is fully searchable, so finding a specific part takes only a few seconds. It is also completely printable, allowing you to bring hard copies into the shop to keep your electronics clean while you work.

Reliable maintenance starts with the right data. By using this official resource, you ensure that replacement parts fit perfectly, protecting your machinery and your harvest schedule. Your download link is provided immediately after purchase so you can start sourcing your components today.
