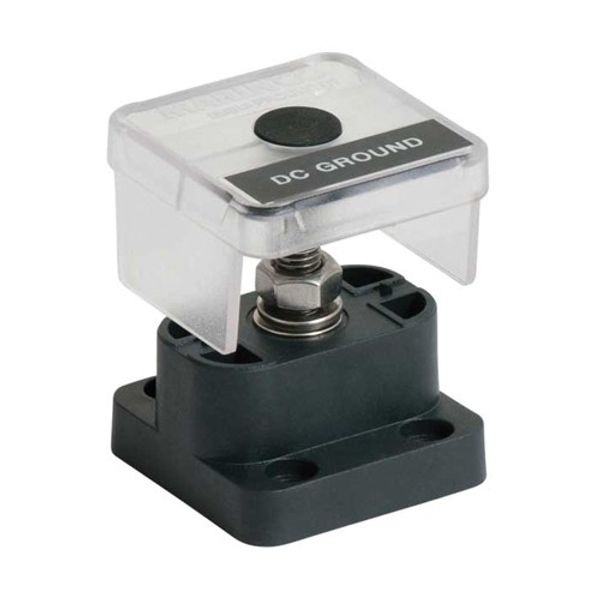

BEP Pro-Installer Insulated Stud Single 8mm

PRO INSTALLER INSULATED STUDS

Pro Installer Insulated studs are available in single and twin stud versions, featuring 8mm (5/16") and 10mm (3/8") variants. A double stud version with 10mm and 8mm studs is also included for extending outboard motor cables. The Power Tapping Plate single stud models provide convenient termination points for additional small cables. Pro Installer family features are replicated with these insulated studs, generous stud length, modular footprint, insulating covers with label recess, common interconnection height.

Specifications:

Power tapping plate: 4x 4mm (5/16") terminals

Maximum current through power tapping plate: 50A per terminal (4x 50A maximum)

Note: no power passes through the stud so no amp rating is given

50 VDC

High temperature, fibre reinforced plastic base provides strength & chemical resistance

Clear polycarbonate cover with snap-out extra cable access

Stainless steel studs, screws and nuts for longevity in the marine environment

Insert moulded studs with metric threads

Double studs feature ‘snap out' insulating partition, to allow linking of studs

Specifications

Manufacturer Part Number: IST-8MM-1S
