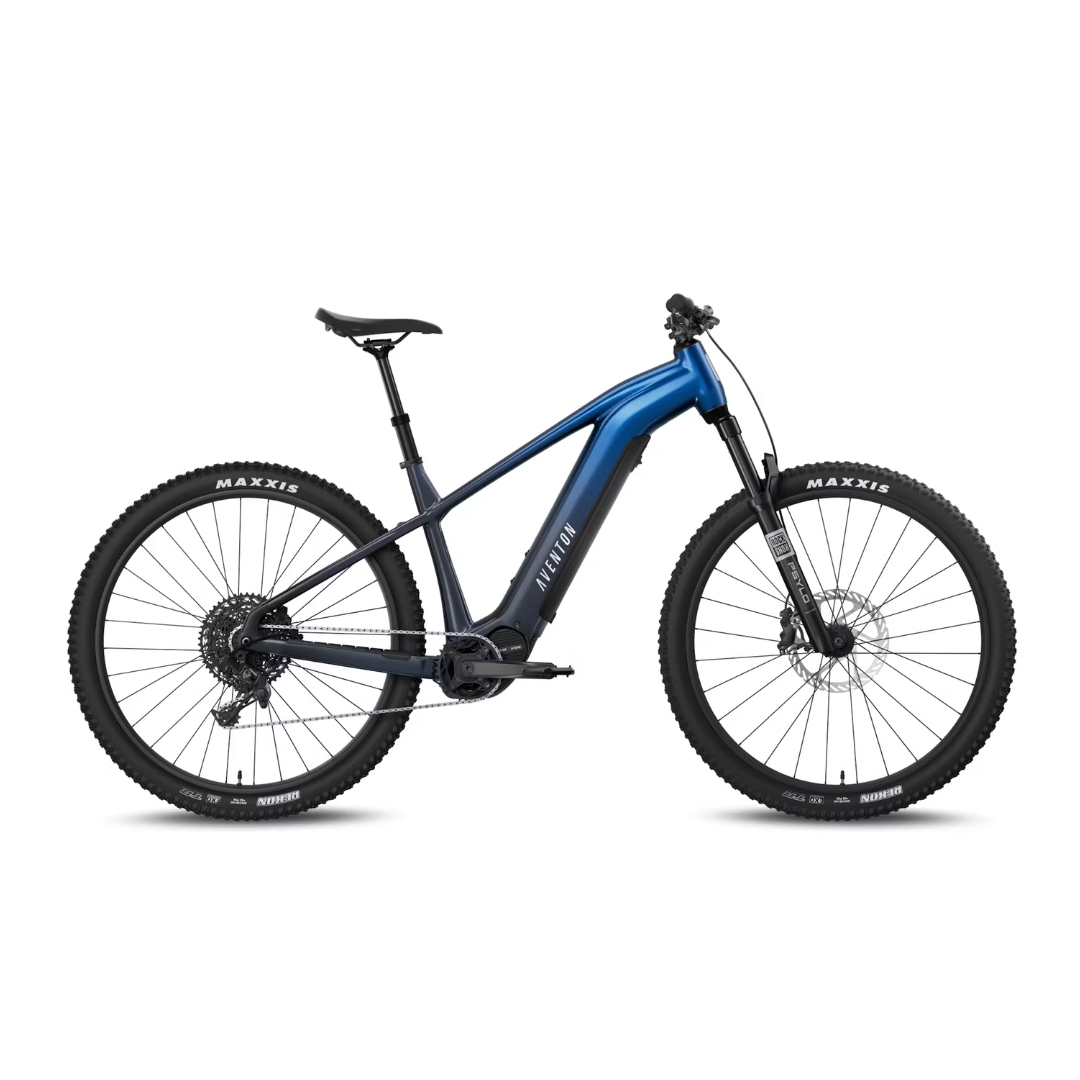

Aventon Ramblas ADV Ebike

The Aventon Ramblas ADV Ebike is a premium Class 1 electric mountain bike engineered for aggressive trail performance and long-distance adventure. Powered by the Aventon a100 mid-drive motor delivering 100Nm of torque, the Ramblas ADV provides natural, responsive pedal assist with exceptional climbing capability.

A high-capacity 708Wh battery offers up to 90 miles of range, while RockShox suspension and SRAM 12-speed components ensure precision handling and durability on demanding terrain. Built with IPX6-rated water resistance and IP67 motor protection, this bike is ready for serious off-road conditions.

Key Features

• Aventon a100 mid-drive motor with 100Nm torque
• 708Wh battery with up to 90 miles of range
• RockShox Psylo Silver R 130mm suspension fork
• SRAM NX 12-speed drivetrain
• SRAM DB6 4-piston hydraulic disc brakes
• Integrated lights
• Class 1 pedal assist

General Specifications

• Model: Ramblas ADV Ebike
• Weight: 54 lbs
• Total Weight Limit: 300 lbs
• Rider Height: 5'5" – 6'5"
• Box Size: 59 x 13 x 36
• Range: Up to 90 miles*
• Water Resistance: Bike IPX6 / Motor IP67
• Safety Certifications: TUV Certified (UL 2849 / UL 2271)

Frame & Suspension

• 6061 single-butted aluminum alloy frame
• RockShox Psylo Silver R fork, 130mm travel
• 35mm stanchions, rebound adjust
• Rear spacing: 12x148mm BOOST
• Front spacing: 15x110mm BOOST

Wheelset & Tires

• 29" wheels, 32-hole BOOST thru axle
• Presta valve, tubeless ready
• Tires: Maxxis Rekon 29" x 2.4" tubeless ready

eBike System

• Class: Class 1
• Motor: Aventon a100 mid-drive, 36V
• Power: 250W sustained / 750W peak
• Torque: 100Nm
• Sensor: Double-sided torque sensor integrated in motor
• Display: Aventon BC201

Battery & Charging

• Battery: Aventon 708Wh, 36V LG 21700 cells
• Battery weight: 8.44 lbs
• Charger: 42V 4A
• Charging time: Approx. 5 hours (0–100%)

Drivetrain

• Rear derailleur: SRAM NX 12-speed
• Shifter: SRAM NX
• Cassette: SRAM SX 12-speed 10-50T
• Chainring: SRAM 34T
• Crankset: 165mm ISIS splined
• Pedals: 9/16" alloy platform

Brakes

• SRAM DB6 4-piston hydraulic disc brakes
• Front rotor: SRAM G2 200mm
• Rear rotor: SRAM G2 200mm

Cockpit

• Seatpost: Manic LC 150mm travel (M–XL)
• Seatpost diameter: 31.6mm
• Handlebars: 760mm width, 35mm clamp, 33mm rise
• Stem clamp diameter: 35mm
• Grips: Aventon lock-on grips

Included Accessories

• Kickstand
• Integrated lights

Additional Notes

The Ramblas ADV ships as a Class 1 eBike with pedal assist only. Built to IPX6 standards for water resistance and IP67 motor protection. Not designed for full submersion. Avoid pressure washing to prevent damage to electronic components.

*Maximum range achieved under ideal riding conditions.
