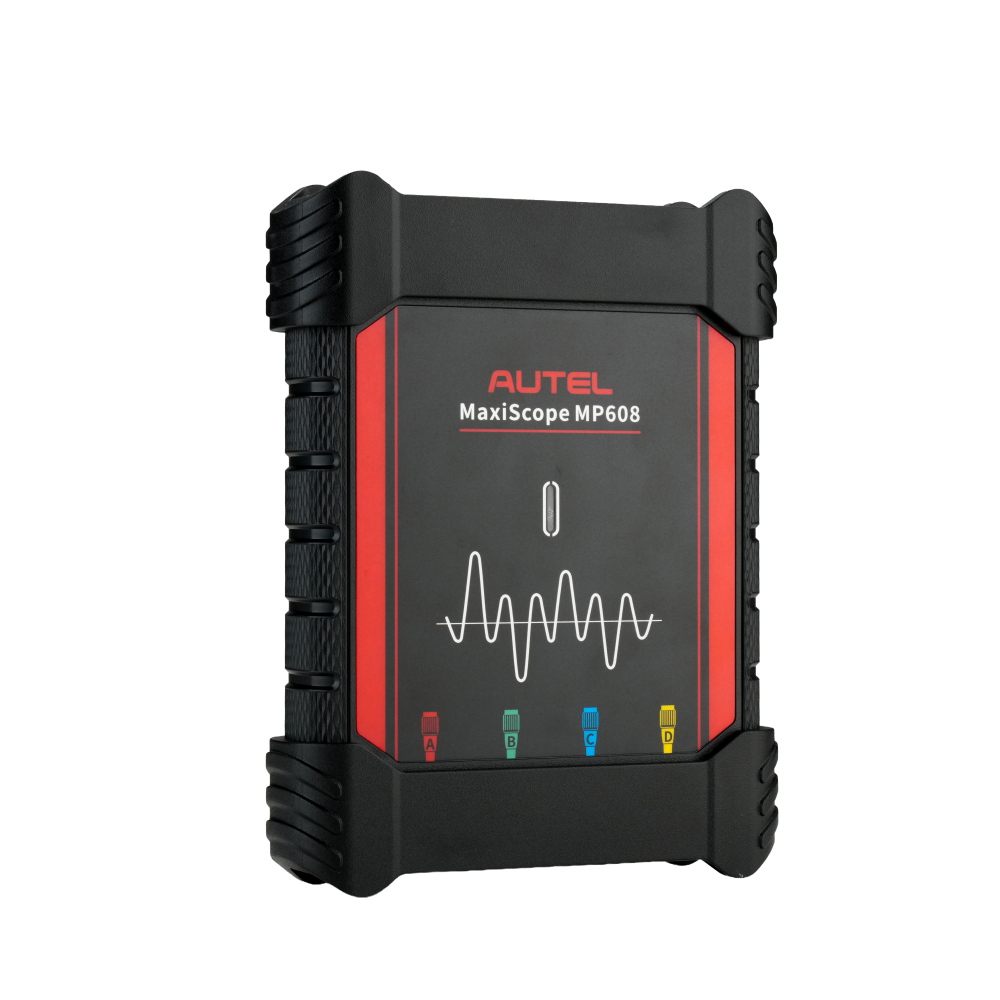

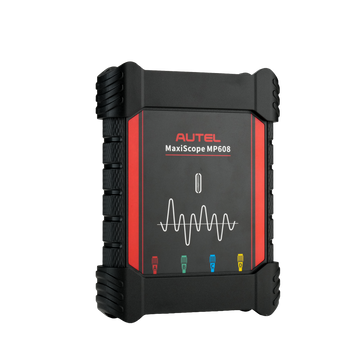

【Pre-Sale】Autel Maxiscope MP608 4-Channel Oscilloscope
Regular price
$534.44
Sale price
$534.44
Regular price
Unit price
-
Free Shipping & Returns: On all orders over $60
【Pre-Sale】Autel Maxiscope MP608 4-Channel Oscilloscope
Regular price
$534.44
Sale price
$534.44
Regular price
Unit price
Product description
Shipping & Return
NOTE: This product is currently available for pre-order only. Shipments are expected to commence after August.
Autel NEW MAXISCOPE MP608--4-CHANNEL OSCILLOSCOPE :The Next Generation Automotive Waveform Diagnostic Platform .
Features:
Professional Diagnostics .Capture More. Diagnose with Confidence.
1). ±1% Measurement Accuracy
2). 12-Bit Vertical Resolution
3). Trigger Actions for Intermittent Fault Capture
4). Advanced Measurement Event Table
Simplified Operation ,Make Advanced Diagnostics Accessible.
1. AI-Generated Math Channel Formulas
2. AI-Generated Probe Parameters
3. Built-in Automotive Case Library
Advanced Visualization .See More. Understand Faster.
1. Oscilloscope Mode
2. Spectrum Mode
3. XY Mode
4. Simultaneous Multi-View Display
Connected Workflow .Turn Every Test into a Valuable Asset.
1. Work-Order-Based Management
2. Cloud Synchronization
3. Waveform Notes & Tags
5 Tablet Mobility, PC-Level Diagnostics .Work Anywhere. Analyze Everywhere.
1. Tablet & PC Support
2. Mobile Testing
3. Advanced PC Analysis
Please Note: The Autel Tablets compatible with the MP608 are MaxiSys MS909S2/ MS909/ MS909EV/ MS909CV/ MS908S3/ MS906MAX/ MS908S II/ MS908S Pro II/ MS906Pro/ MS906Pro-TS/ MS906Pro2-TS/ Ultra ADAS/ Elite II/ Elite II Pro, MaxiCOM Ultra Lite / Ultra Lite S, MaxiIM IM608 II/ IM608 Pro II
SPECIFICATIONS
Channels :4
Vertical resolution : 12 bits
DC accuracy: ±1%
Sensitivity : 10mV/div to 40 V/div
Input ranges (full scale): ±50mV to ±200V in 12 ranges
Bandwidth : 20 MHz
Buffer Memory: 32M Samples
Timebase ranges : 100ns/div to 1ks/div
Maximum Sampling Rate (single shot) : 1 channel in use 80 MS/s 4 channels in use 20 MS/s
PC interface: USB 2.0
Power requirements: Powered from USB port
Dimensions : 184 x 144 x 41mm (approx. 7.2 x 5.7 x 1.6 in)
Weight : 560 g (approx. 1.23 lb)
Operating temperature : -10 to +50°C
Storage temperature: -20~+60°C
Package List
