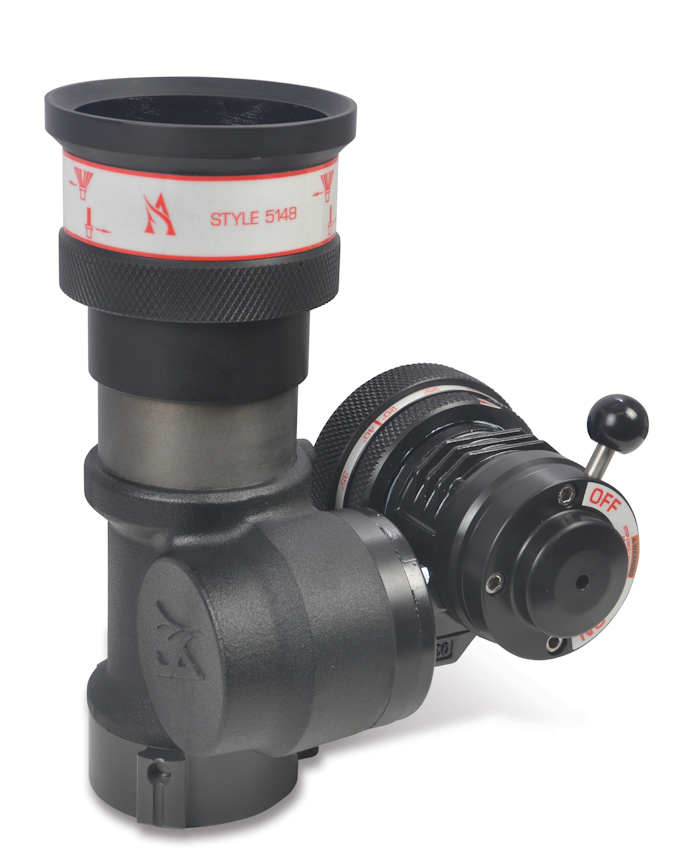

5148 Akron Oscillating Mercury Quick Attack Adjustable Flow Nozzle 500 GPM

5148 OSCILLATING QUICK ATTACK
ADJUSTABLE FLOW NOZZLE 500 GPM

Turn your Mercury Quick Attack Monitor into an oscillating monitor.

This water-powered oscillating nozzle is designed to work with the MercuryMaster 1000. This nozzle can be retrofitted to any existing MercuryQuick Attack monitors.

It comes set at 500 GPM at 75 psi, oscillation on/off lever and an infinitely adjustable oscillation range from 20 to 40 degrees with a push-button locking mechanism.

Features

• Pyrolite Nozzle
• Manual Pattern Control
• 500 gpm
• 2 1/2" Inlet
• Oscillation On/Off lever
• Push-button lock
• Length: 12 ¼”
• Width: 9”
• Height: 7¼”
• Weight: 11 lbs.

Specifications

Style	5148
Warranty
Weight	11 lbs (5.0 kg)
Type	Master Stream
Material	Pyrolite
Brand	Mercury
Length	12-1/4" (311 mm)
Flow (GPM)	500 gpm
Flow (LPM)	1900 lpm

Note: Special threads are approximate 8 week lead time and not subject to cancellation or return. Please be certain of your thread type before ordering.

Important Thread Data:
Please review this document,
if you are not certain the type of threads your department has.

This item is not available for export. We cannot supply any export documentation.
