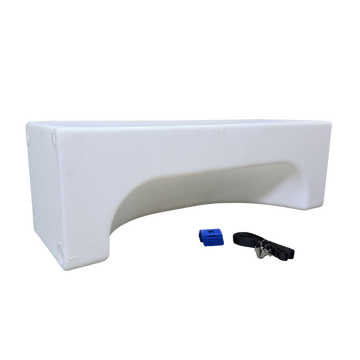

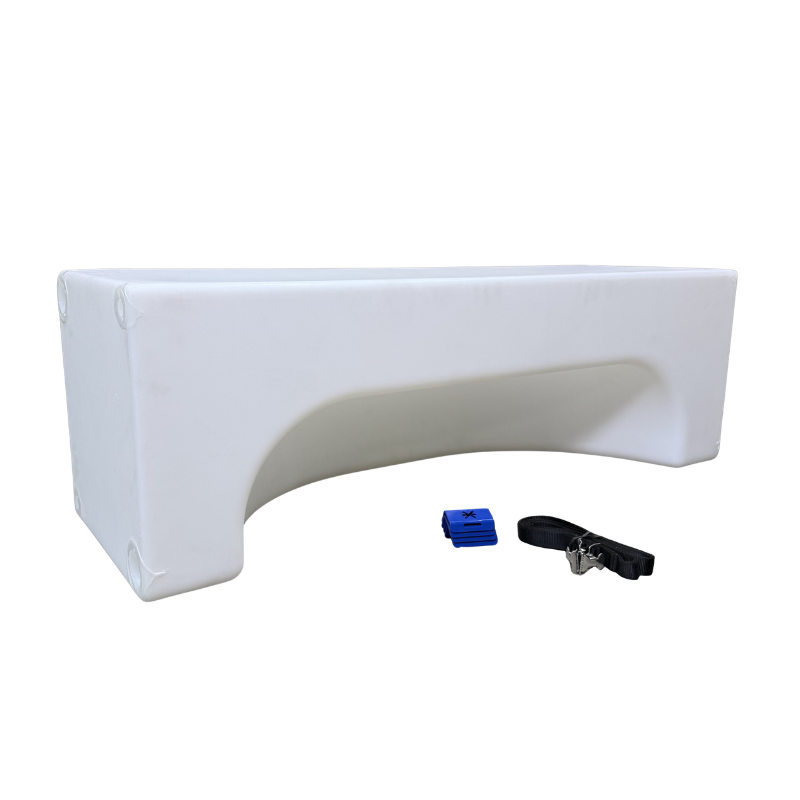

36-Gallon Wheel Well Water Tank - Center (SP-C-36)

Make use of the space your wheel well would otherwise waste. This tank sits centered over the wheel well, keeping your floor plan open while adding serious water capacity for your van build.

Dimensions & Weight

• Size: 48" long × 16" deep × 16" tall
• Capacity: 36 gallons
• Weight: 31 lbs

Ports & Plumbing

• (2) 1.5" NPT ports on either end, pre-marked, drill out to use
• (2) 1/2" NPT ports on either end
• (1) 1.5" NPT port on top for fill or level sensor, pre-marked, drill out to use
• Not designed for pressurized systems, must be vented

Included With Every Order

• (x2) Adjustable straps
• (x4) Mounting brackets


Materials & Certifications

• BPA-free, food-grade plastic
• IAPMO TS 4 Certified
• Made in the USA

Vehicle Compatibility

• Sprinter 2500 direct fit (also fits Sprinter T1N)
• Transit (single rear wheel) fits with slightly more room around the wheel well for insulation
• ProMaster requires a 3.5" elevation to clear the larger wheel wells
• Compatible with other makes and models (see below)
• Can be placed on either driver or passenger side
