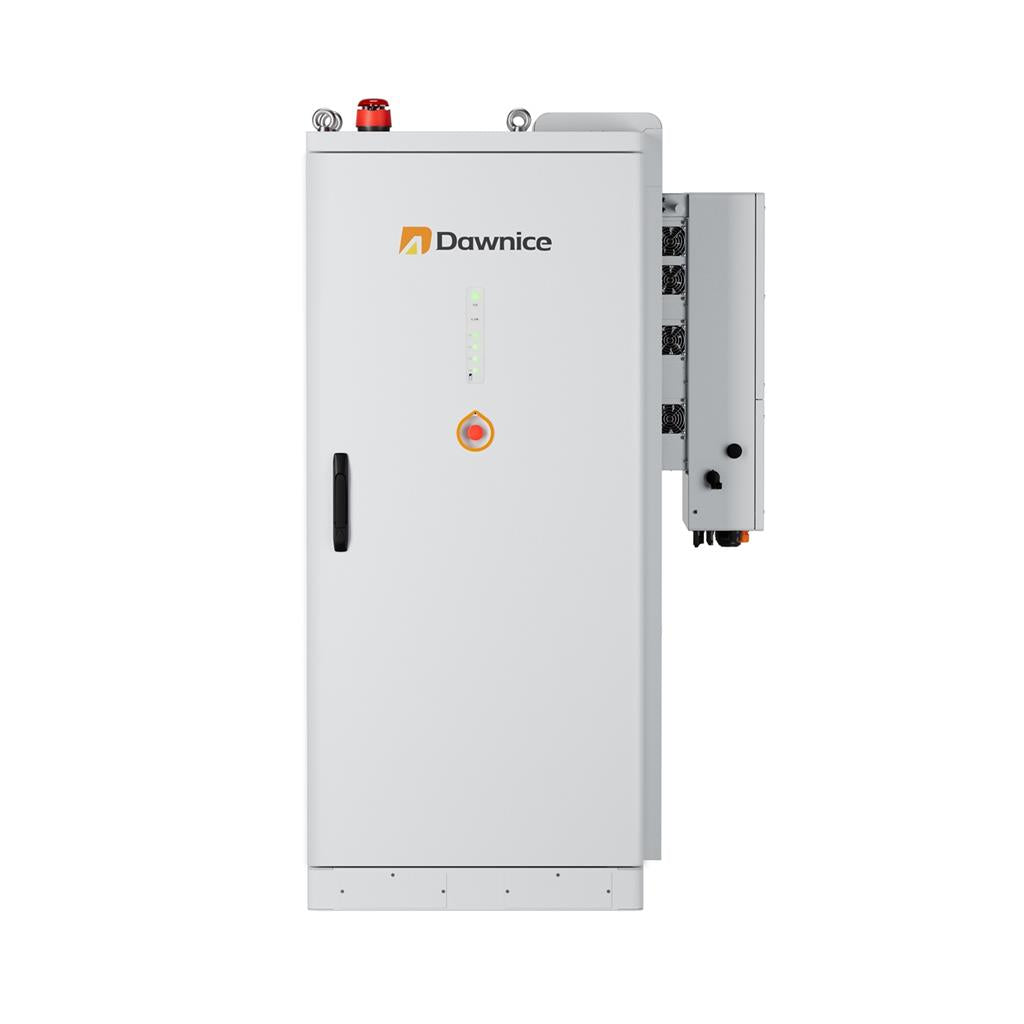

This 112 kWh LiFePO₄ energy storage system offers 6000+ cycles (16+ years) of lifespan and is designed for harsh outdoor applications thanks to its IP54 enclosure and temperature range of –10℃ to 55℃.
The modular design consists of 7 × 16 kWh battery packs, with a continuous discharge current of 157A, sufficient to support critical loads for 4–8 hours.

The air-cooled system operates at 92% efficiency and only 35 dB, which is 60% quieter than traditional generators.
The vertical compact cabinet (2.08 m high) saves 40% space, ideal for:

• telecom stations,

• coastal installations,

• high-altitude locations.

Smart temperature derating above 45°C protects the battery and automatically balances between 80–100% depth of discharge for optimal lifespan.

Technical Specifications

Battery pack

• Model: HZEB-HCT-16

• Cell type: LiFePO₄

• Nominal energy: 16,076 kWh

• Nominal capacity: 314Ah

• Nominal voltage: 51.2V

• Number of battery packs: 7

• Cooling method: Fan-cooled

• Charging temperature: 0℃ ~ 55℃

• Discharge temperature: –10℃ ~ 55℃

• IP rating (module): IP20

Module Parameters

• Model: BS09-112-DP

• Nominal energy: 112.53 kWh

• Available energy (90% DOD): 101.28 kWh

• Nominal system voltage: 358.4V

• Operating voltage range: 313.6V ~ 403.2V

• Configuration: 1P112S

• Charge/discharge current: 157A

• Discharge depth: Max 100% (Recommended: 80%)

• IP rating (system): IP54

• Corrosion resistance: C3 (Optional: C5)

• Installation: Outdoor, floor standing

• Cooling: Air cooling

• Operating temperature: –30℃ ~ 55℃ (derating above 45℃)

• Storage temperature: 0℃ ~ 35℃

• Status display:

  • Green: system active

  • Red: system alarm

• Communication: CAN, RS485

• BMS communication: CAN

• Relative humidity: ≤ 90% (non-condensing)

• Max. operating altitude: ≤ 2000 m

Lifespan

• Cycles: ≥ 8000 cycles @ 25℃, 0.5C/0.5C, 90% DOD, 70% EOL

• Design life: ≥ 15 years (25℃)

• Stored & delivered energy (total): 180.7 MWh

Dimensions & Weight

• Dimensions (W × D × H): 915 × 1287 × 2085 mm

• Weight: 1342 kg

Certifications

• MSDS

• UN38.3
